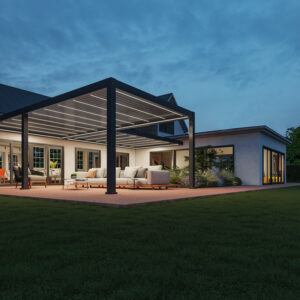

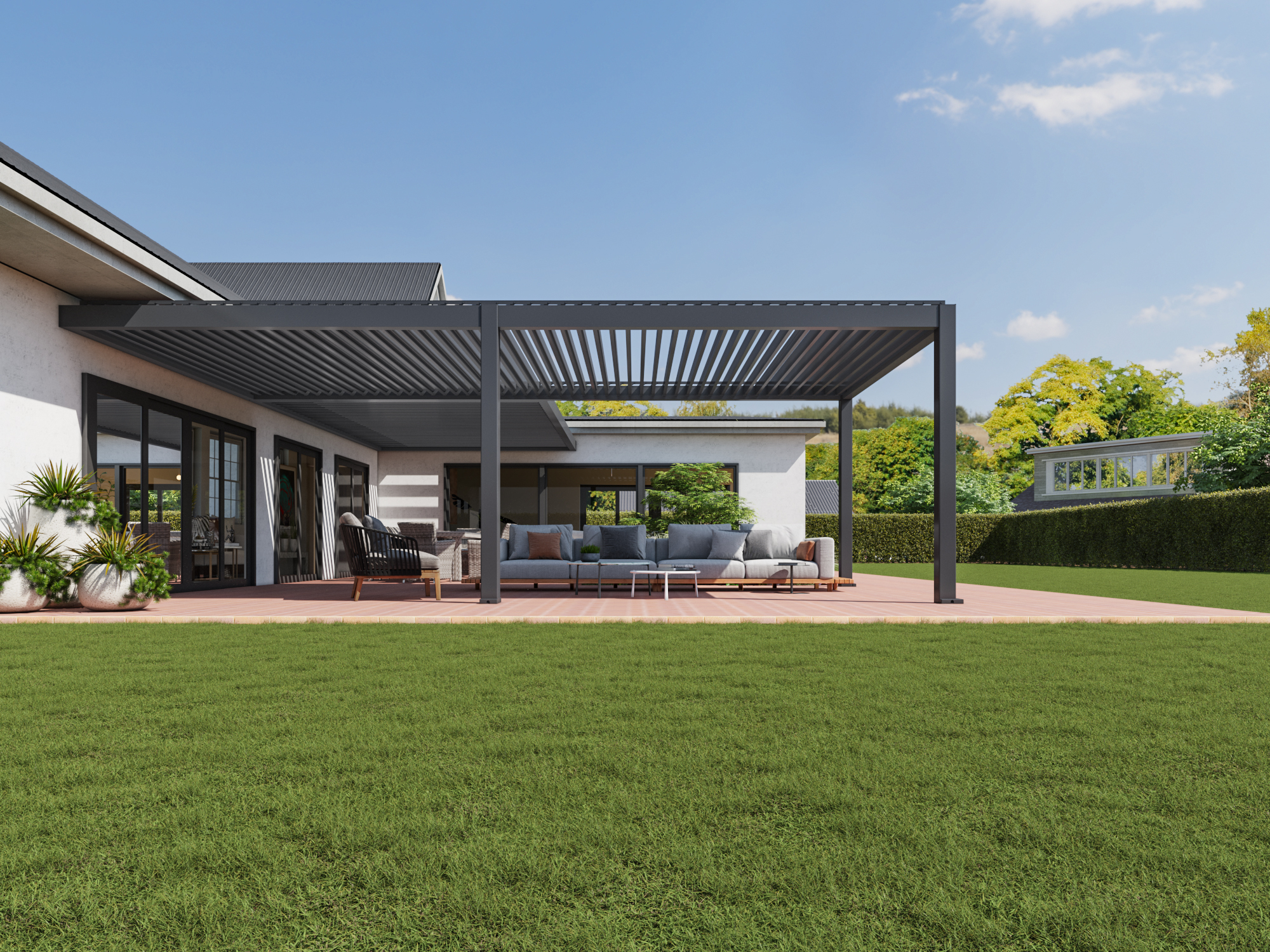

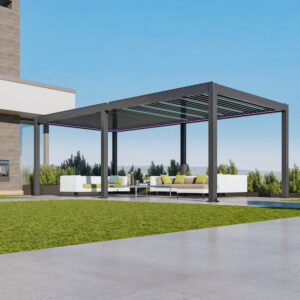

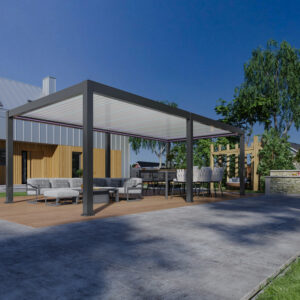

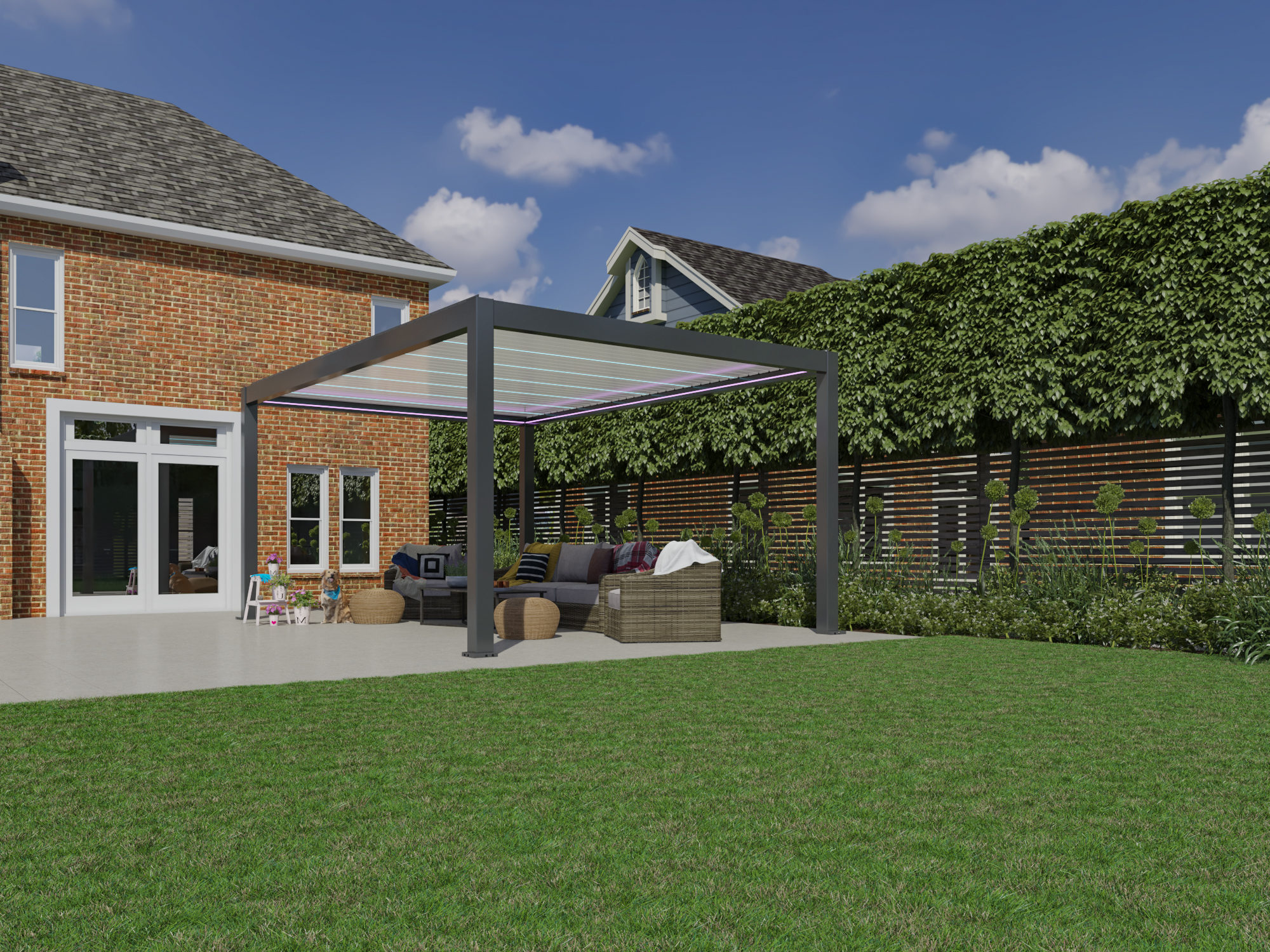

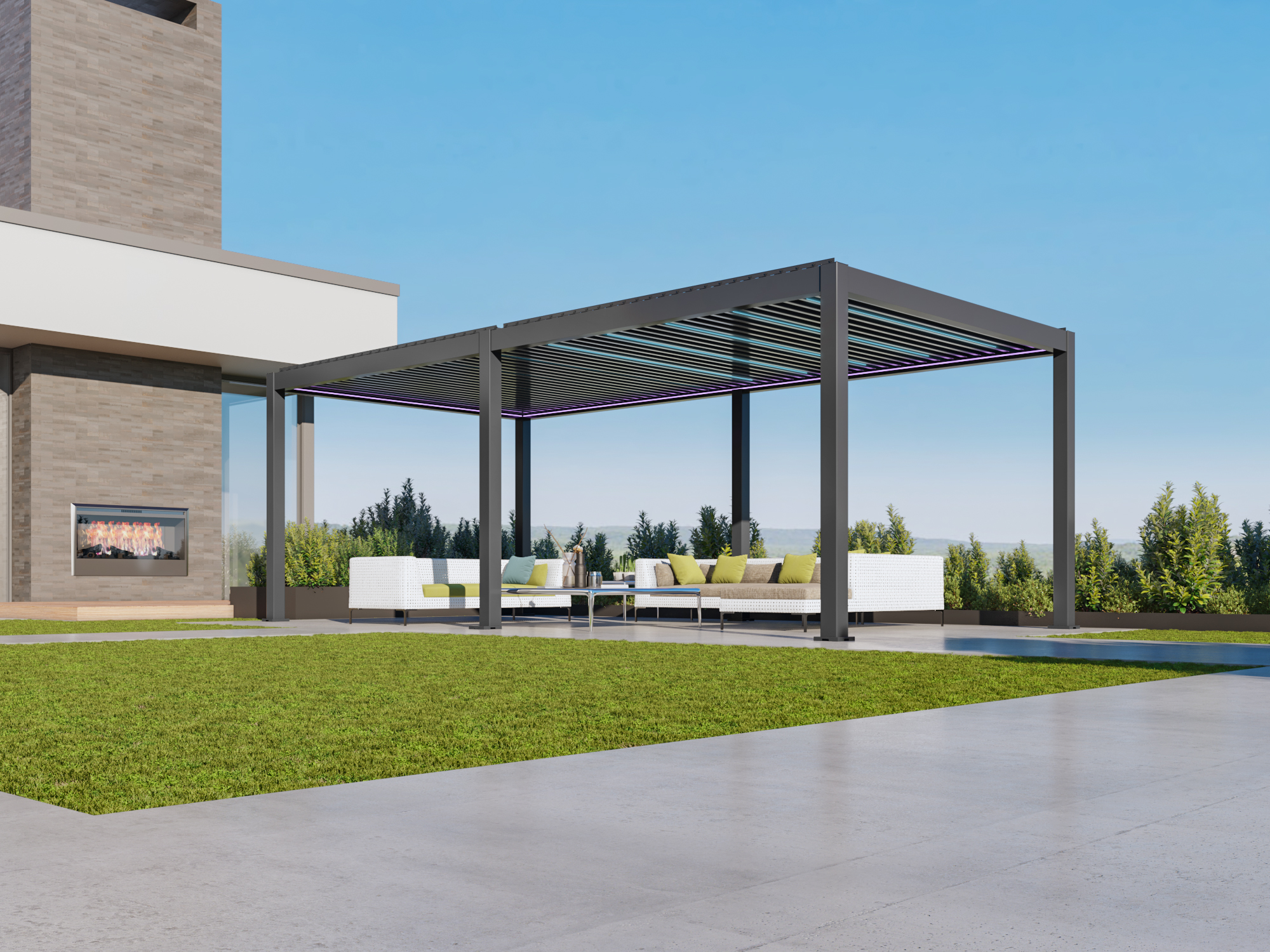

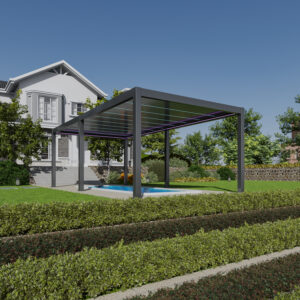

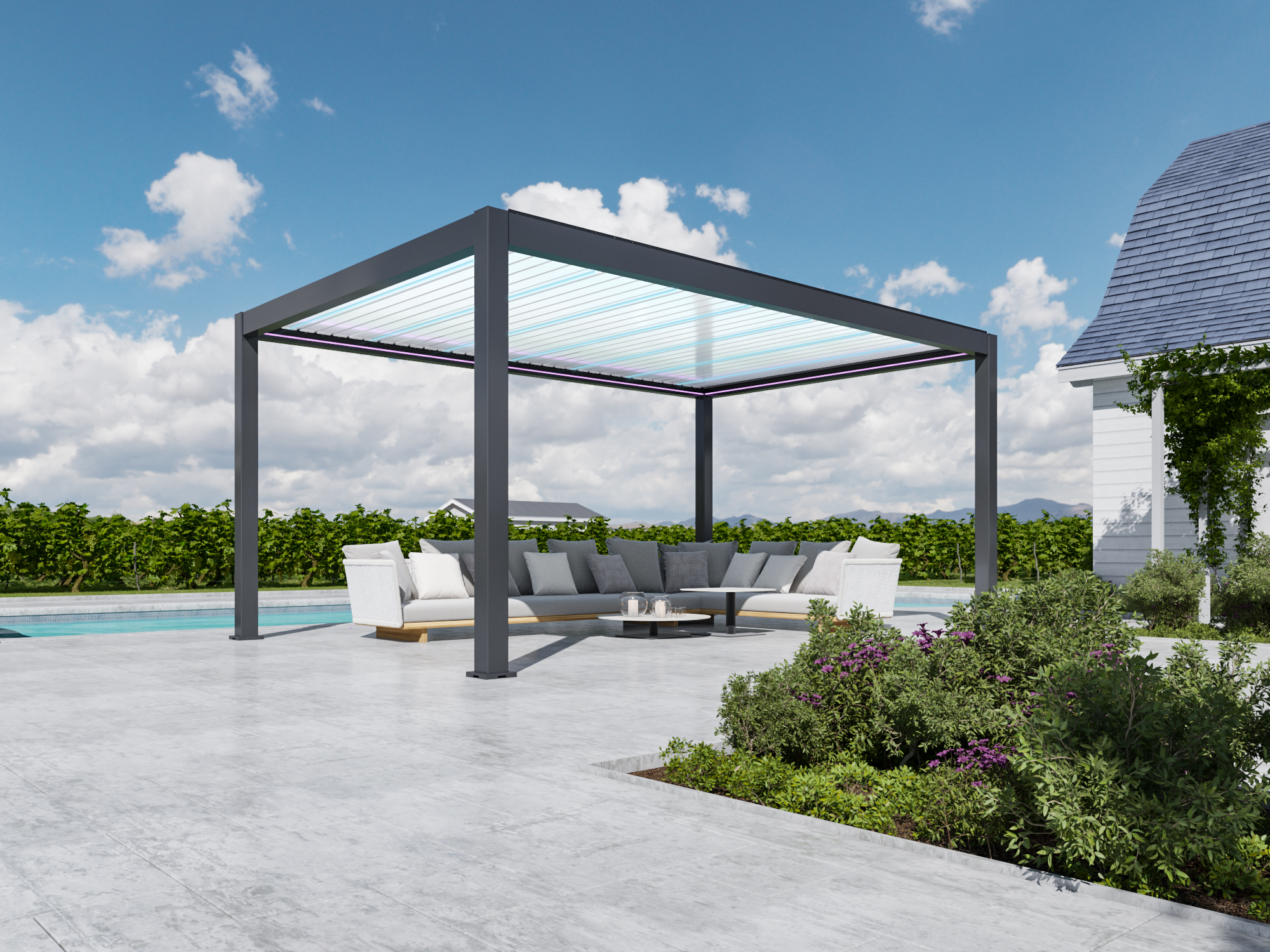

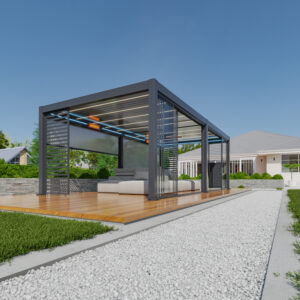

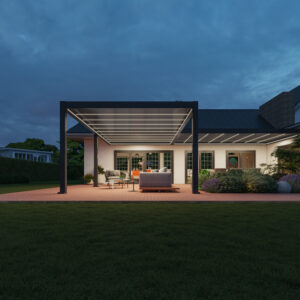

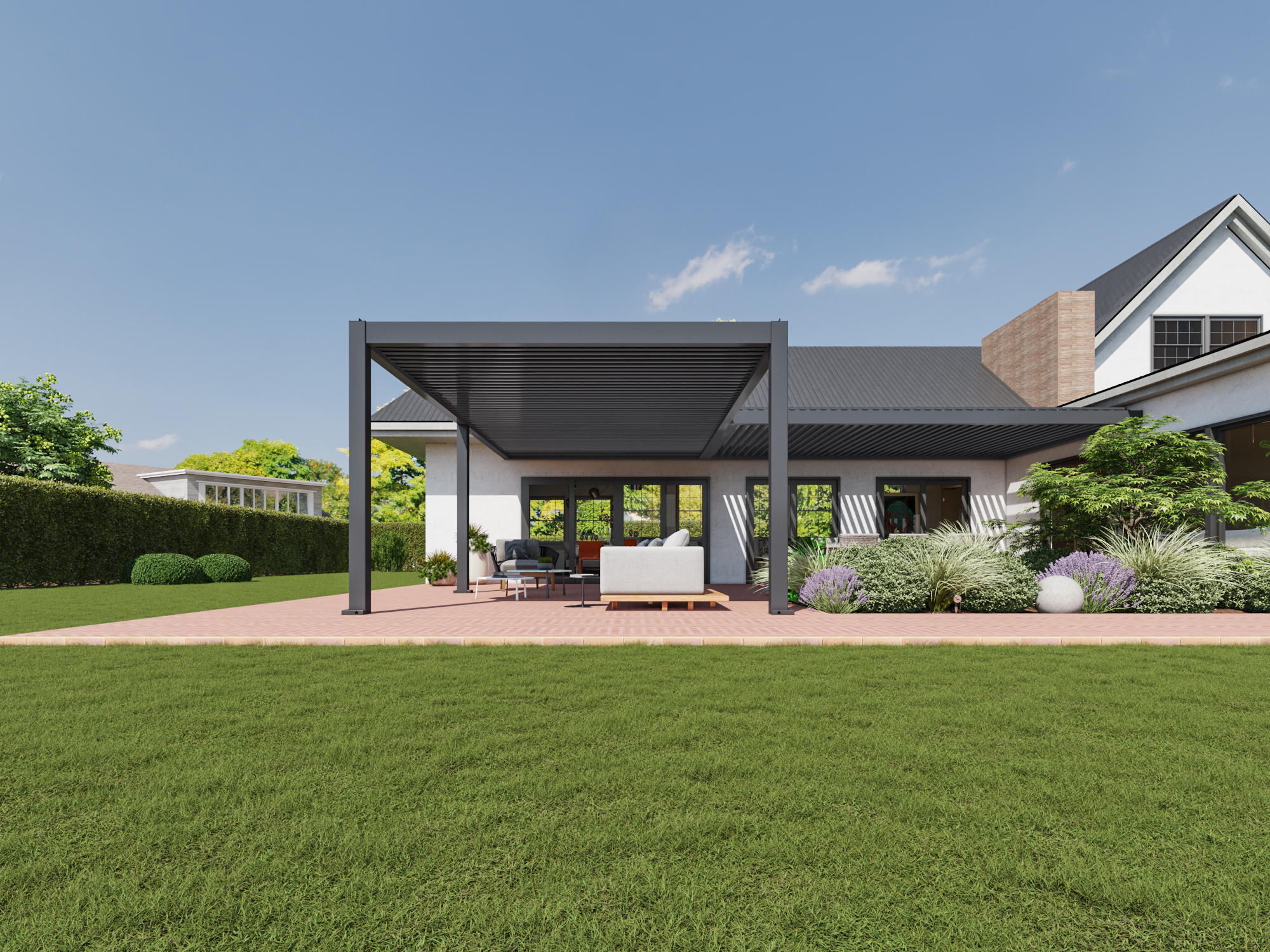

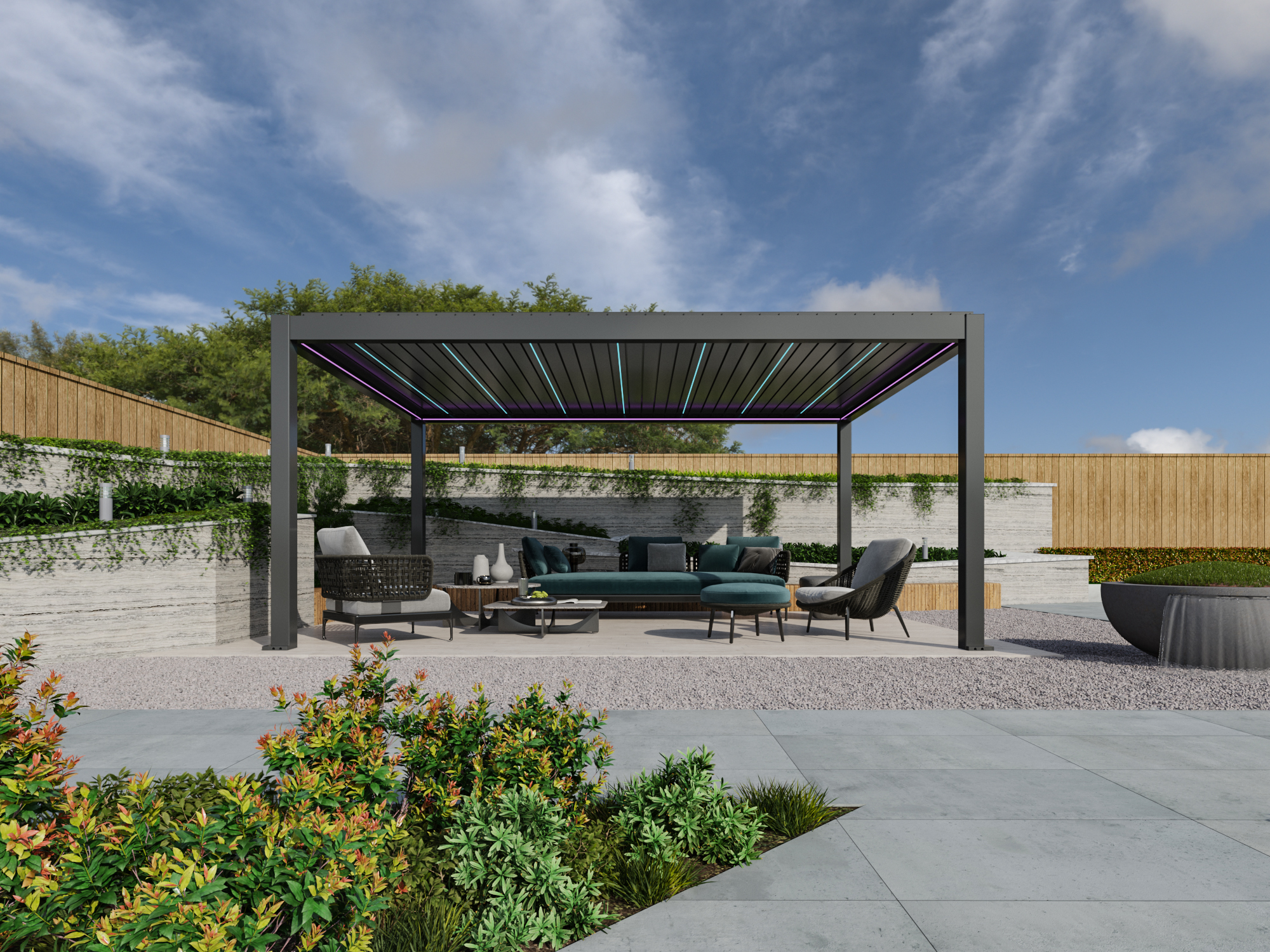

Bioclimatic pergola Bellano S25 PRO – top-tier combination of design, functionality and durability.
Bellano S25 PRO is a modular bioclimatic pergola with an aluminium structure, designed for individual needs. It allows full customisation of dimensions, colours, shading and accessories.

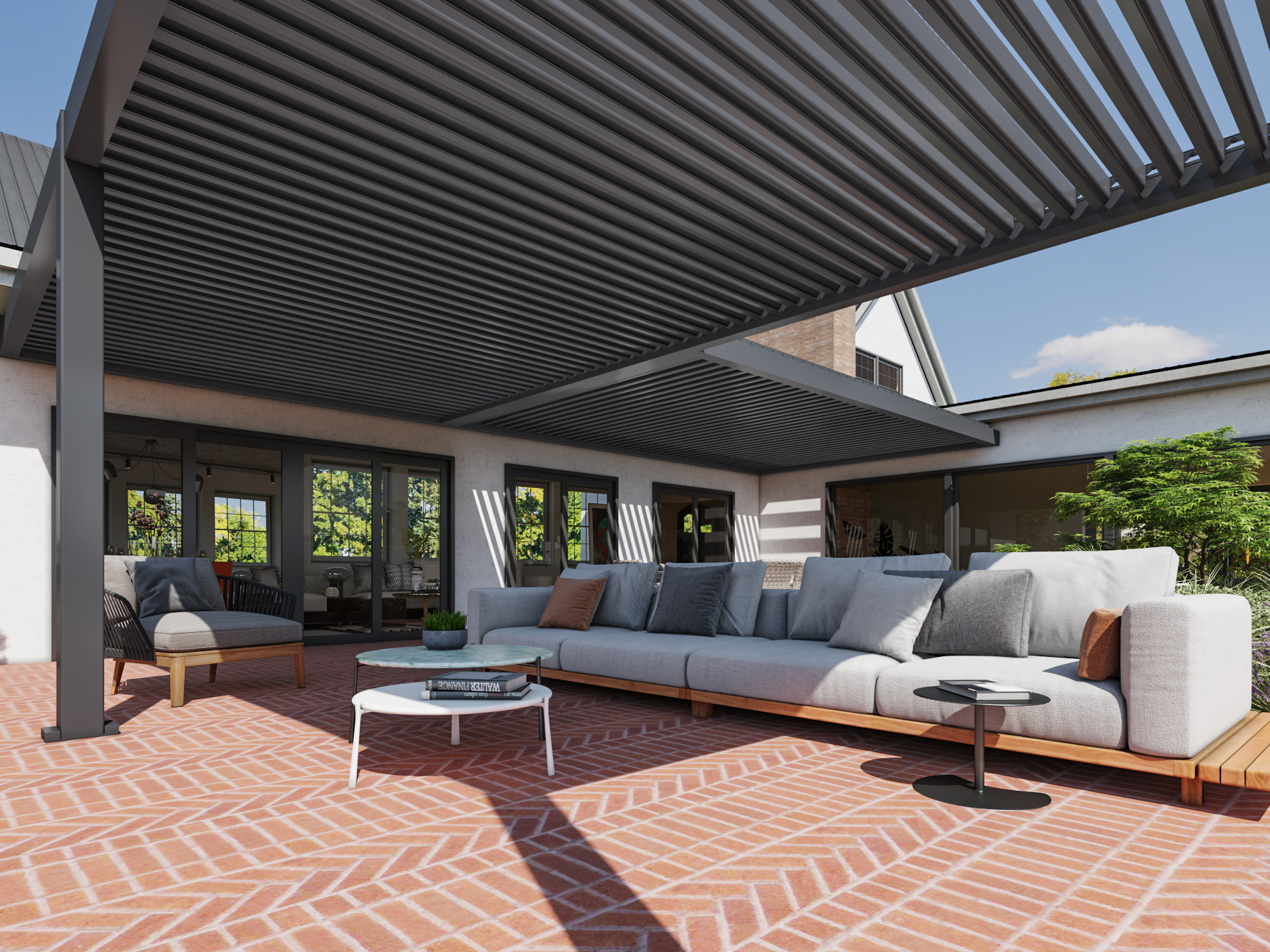

Its key advantage is the motorised aluminium louvres, which allow precise adjustment of light, airflow and protection against weather conditions.
The structure is made of high-quality aluminium, surface-treated with Akzo Nobel powder coating, ensuring long lifespan and an aesthetic appearance.
A wide range of accessories is available: ZIP screen shading, LED lighting, sliding and fixed walls, integrated sensors for wind, rain and light.

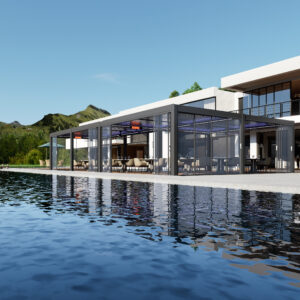

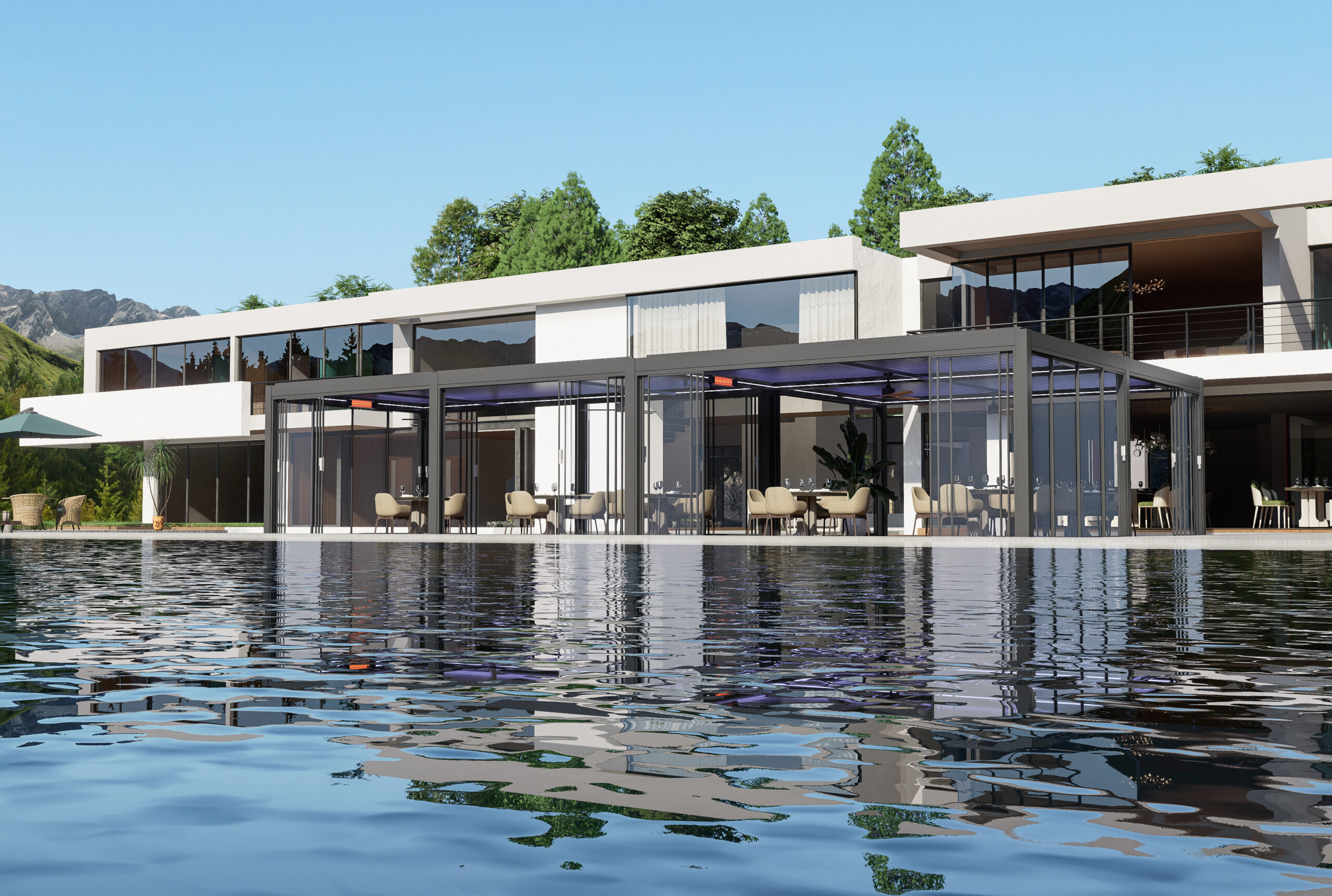

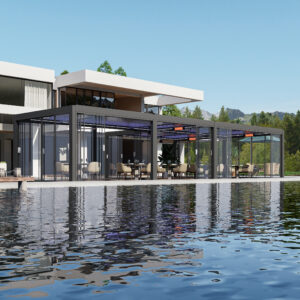

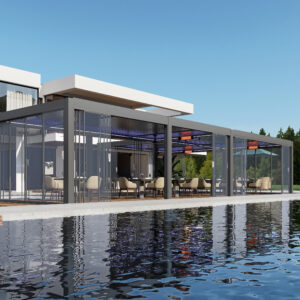

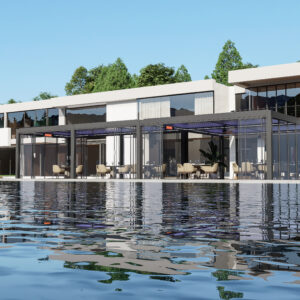

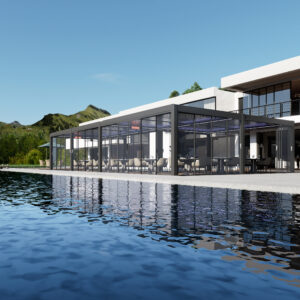

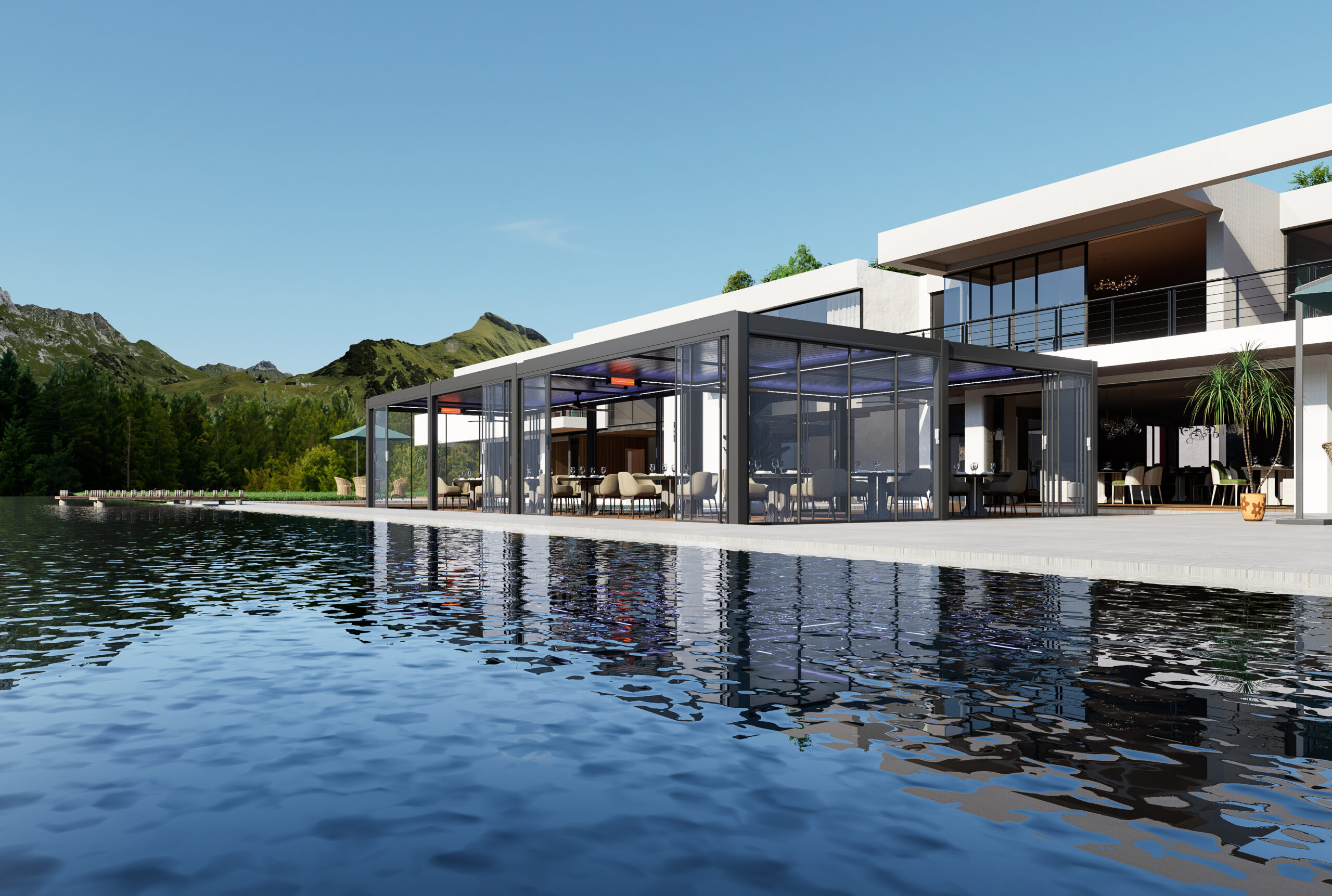

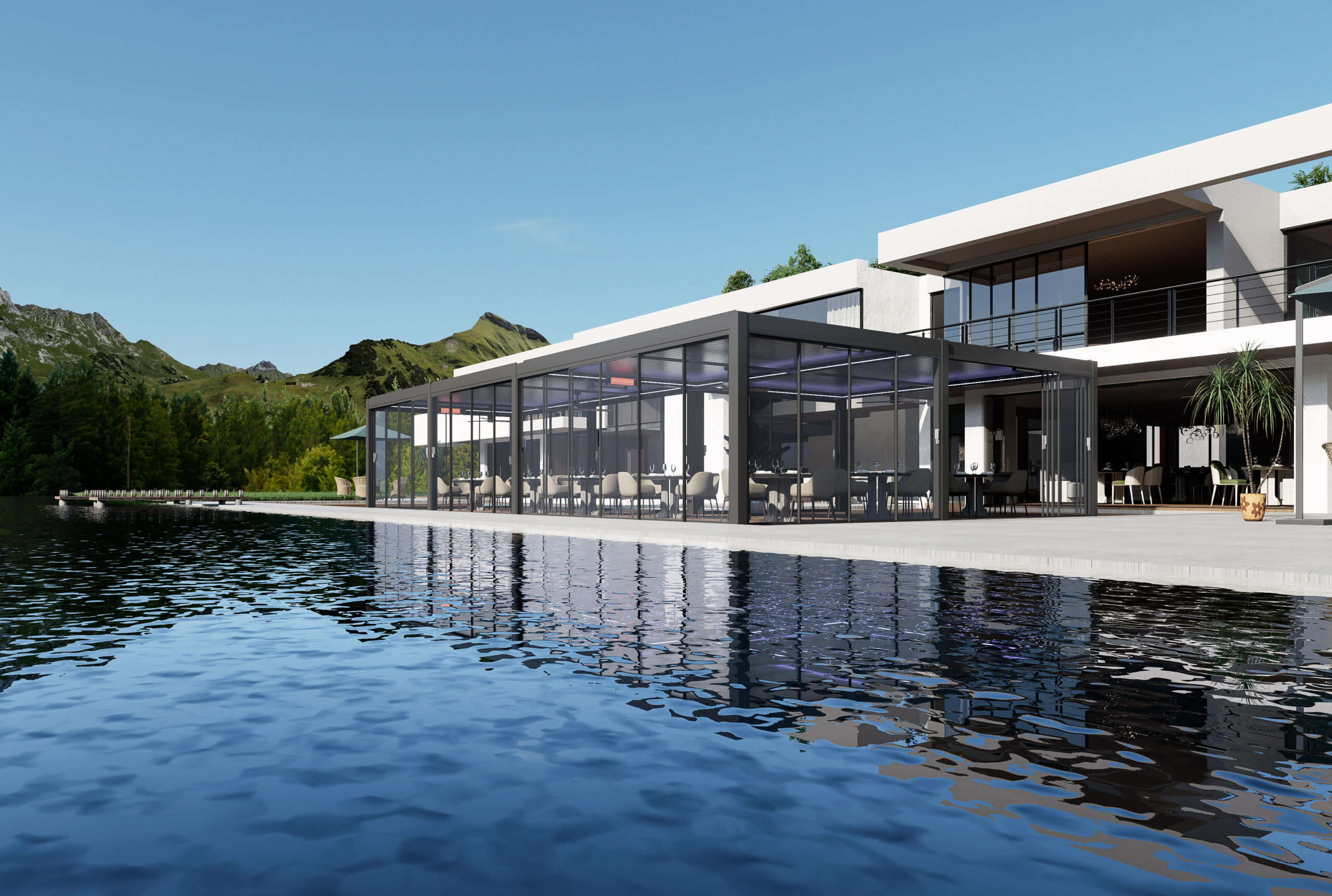

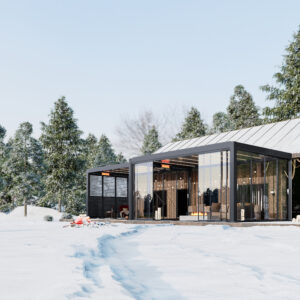

The Bellano S25 PRO pergola is suitable for private terraces, restaurants, hotels and commercial spaces, offering a modern, durable and visually refined outdoor solution for year-round use.
AVAILABLE DIMENSIONS:
- Width: up to 4 m
- Length: up to 10 m
- Height: 2.8 m gross or 2.61 m net, or custom
✅ Technical specifications – Bioclimatic pergola Bellano S25 PRO (made to order)
🔧 Structure and materials:
-
High-quality structure made of aluminium alloy 6063 T5
-
Surface-finished with Akzo Nobel powder coating (UV and corrosion protection)
-
Colours available:
– Standard colours: RAL 7016 (anthracite grey), RAL 9016 (white), RAL 9005 (black)
– By request: all RAL colours (additional cost) -
Concealed fastening elements for an elegant appearance
🔩 Roof system – louvre roof:
-

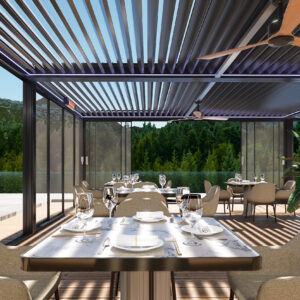

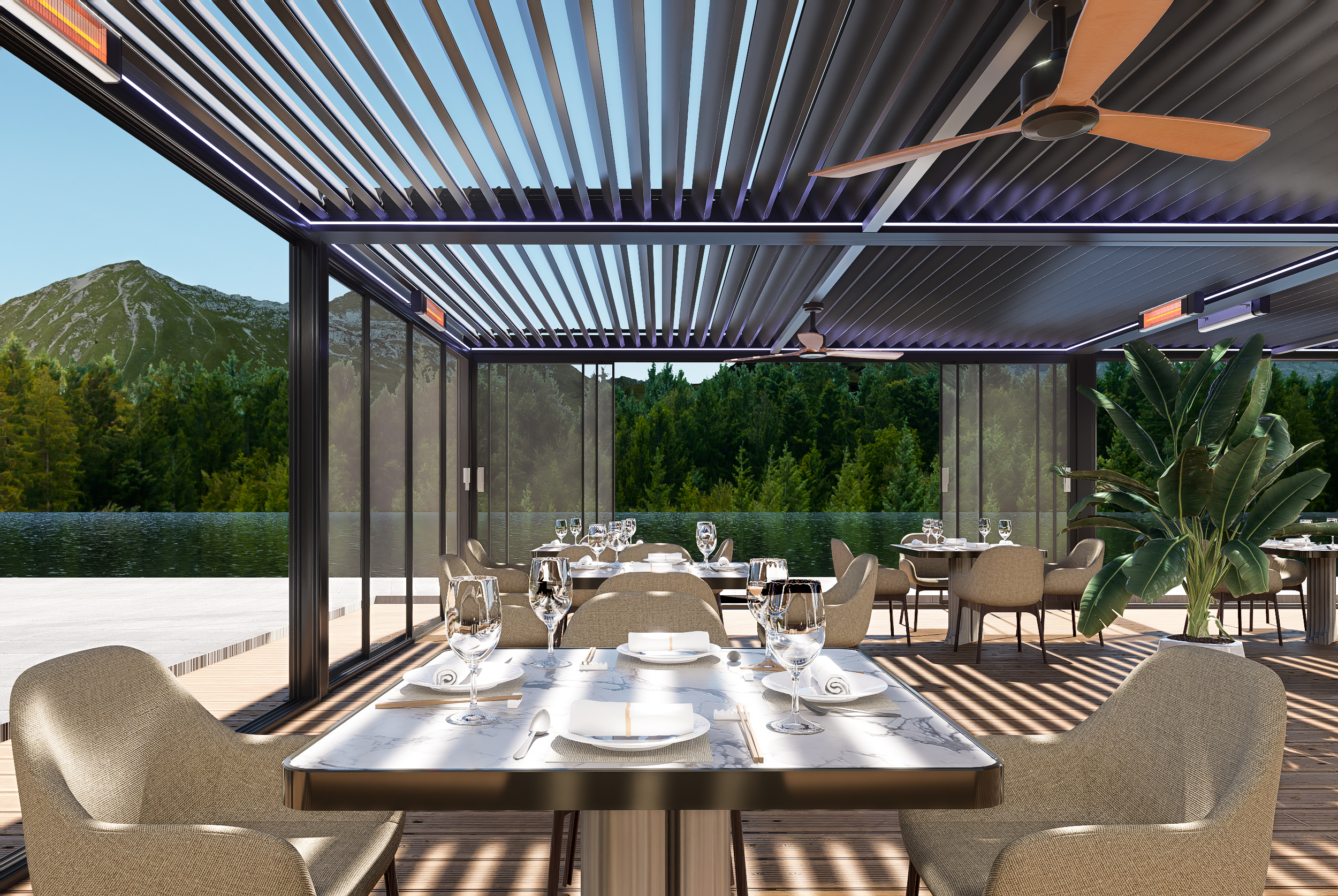

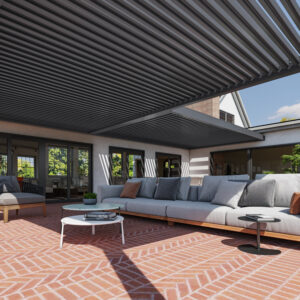

Motorised aluminium louvres with rotation up to 135°
-
Louvres allow:
– Precise light control
– Natural ventilation
– Full closure for rain protection -
Sealing between louvres for water protection
🌧️ Resistance and drainage:
-
Integrated hidden rainwater drainage system inside the posts
-
Weather resistance:
– Wind resistance up to 144 km/h (class 6)

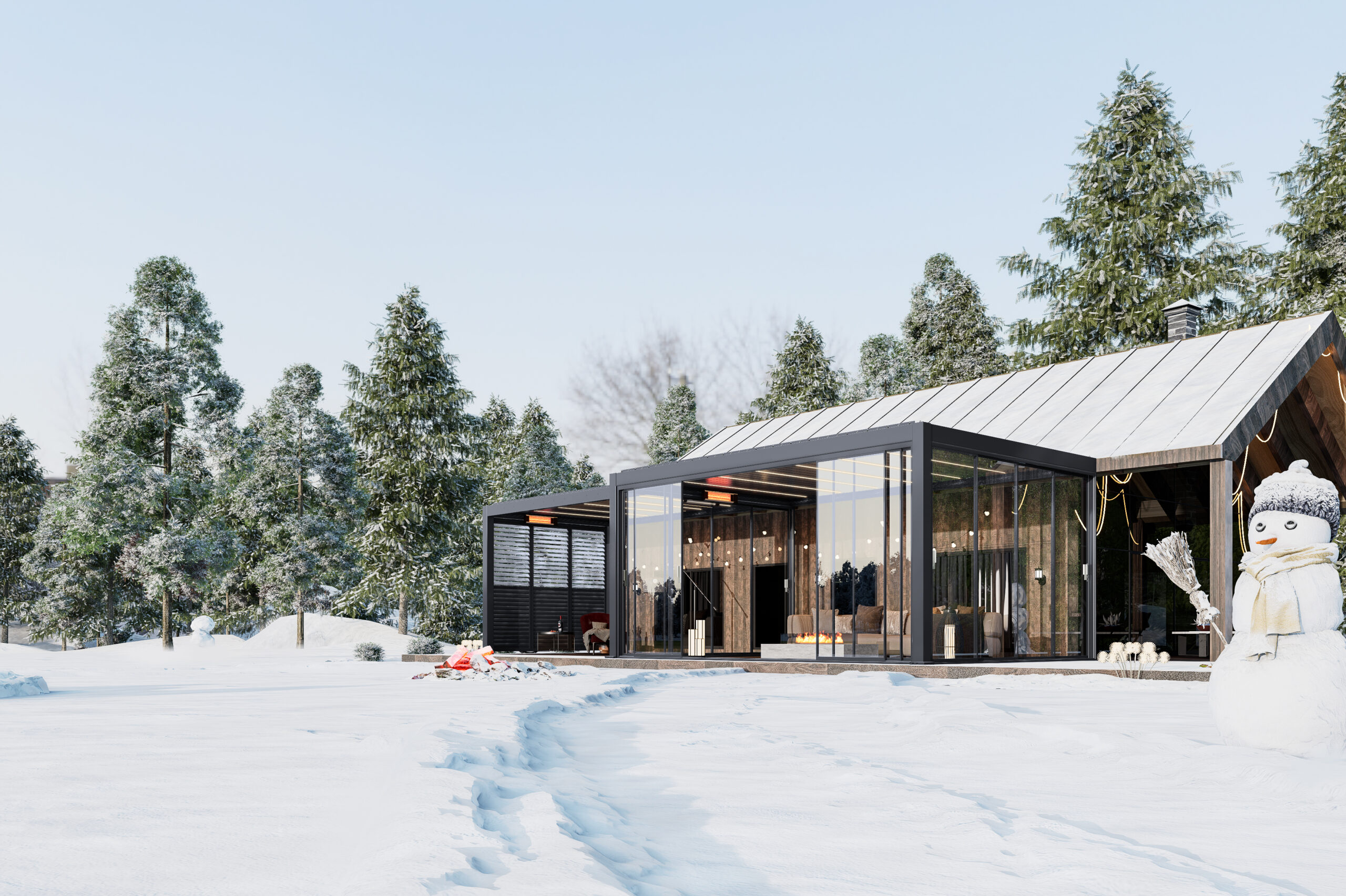

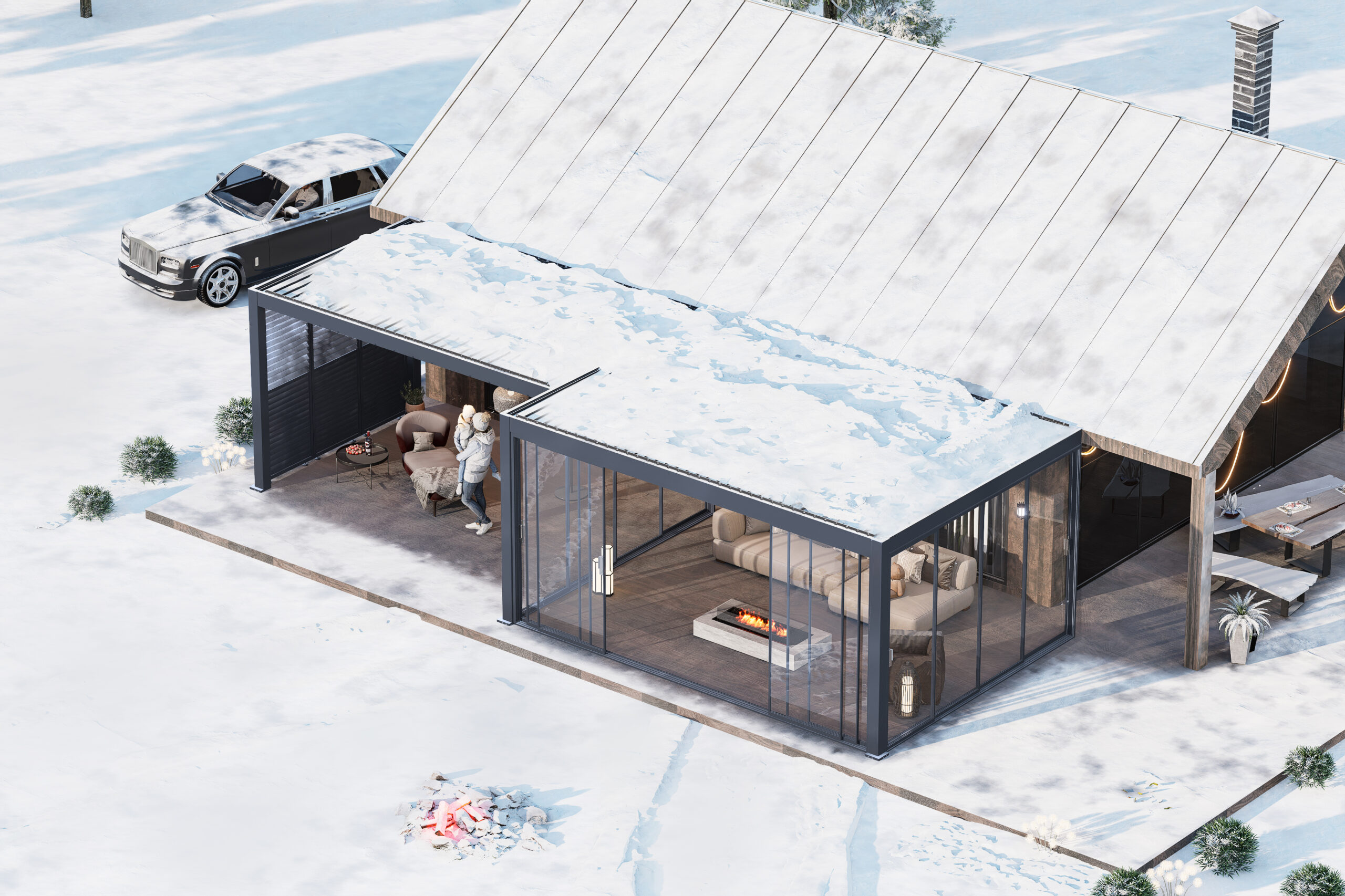

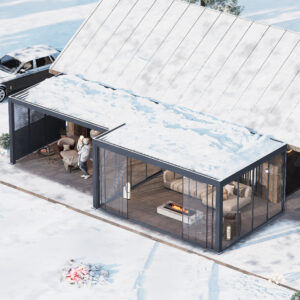

– Snow load: up to 160 kg/m²
📐 Dimensions and configurations:
-
Fully customisable dimensions
-
Installation options:

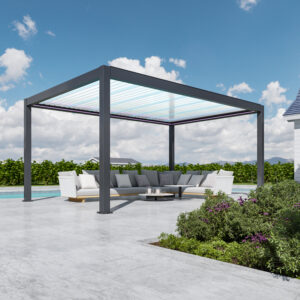

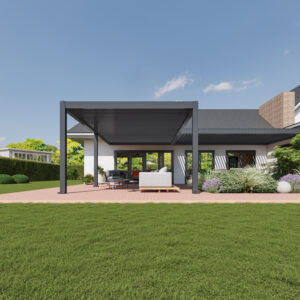

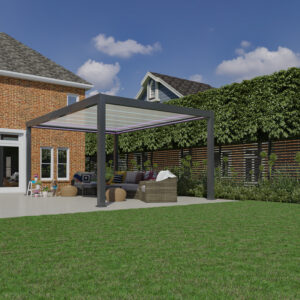

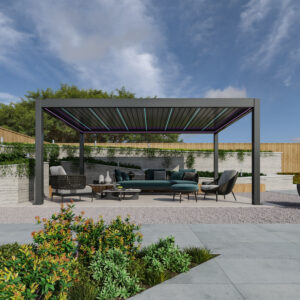

– Free-standing

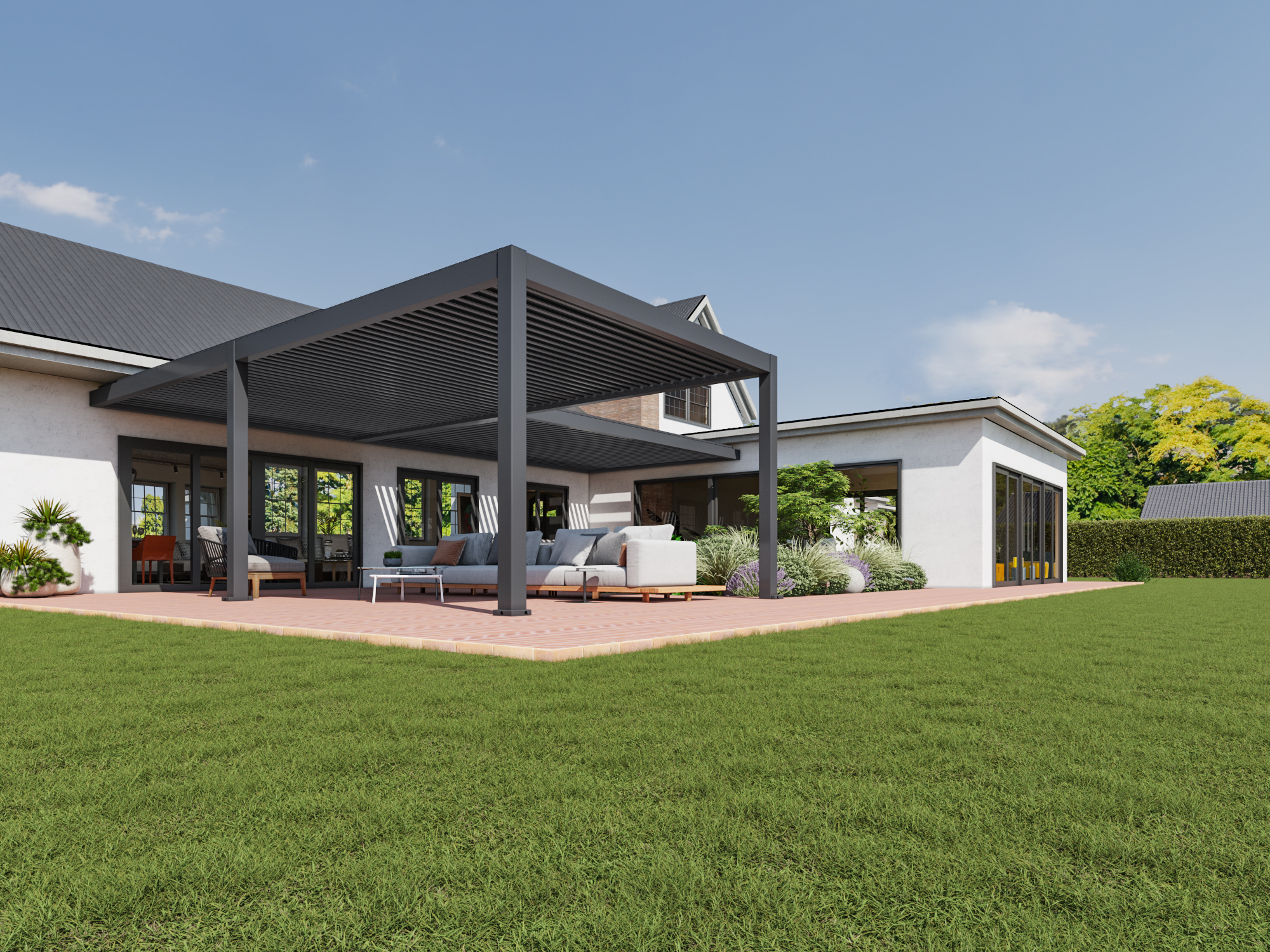

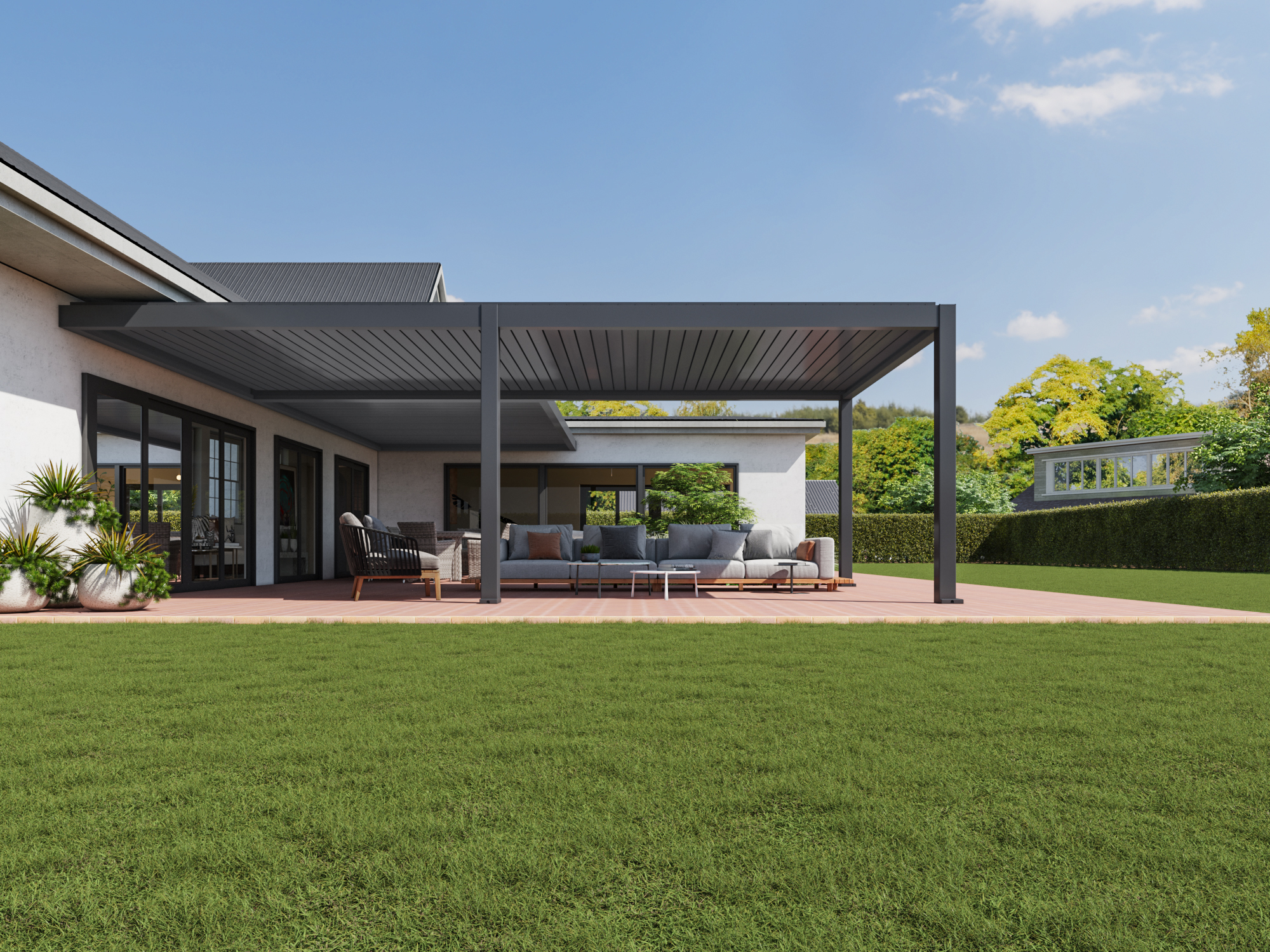

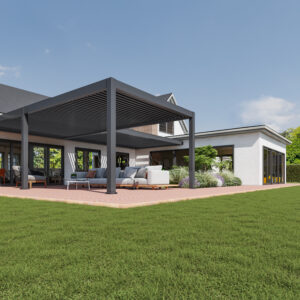

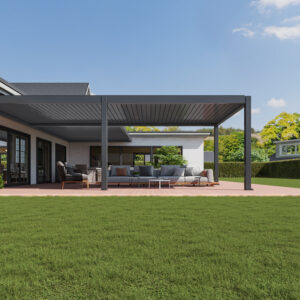

– Wall-mounted

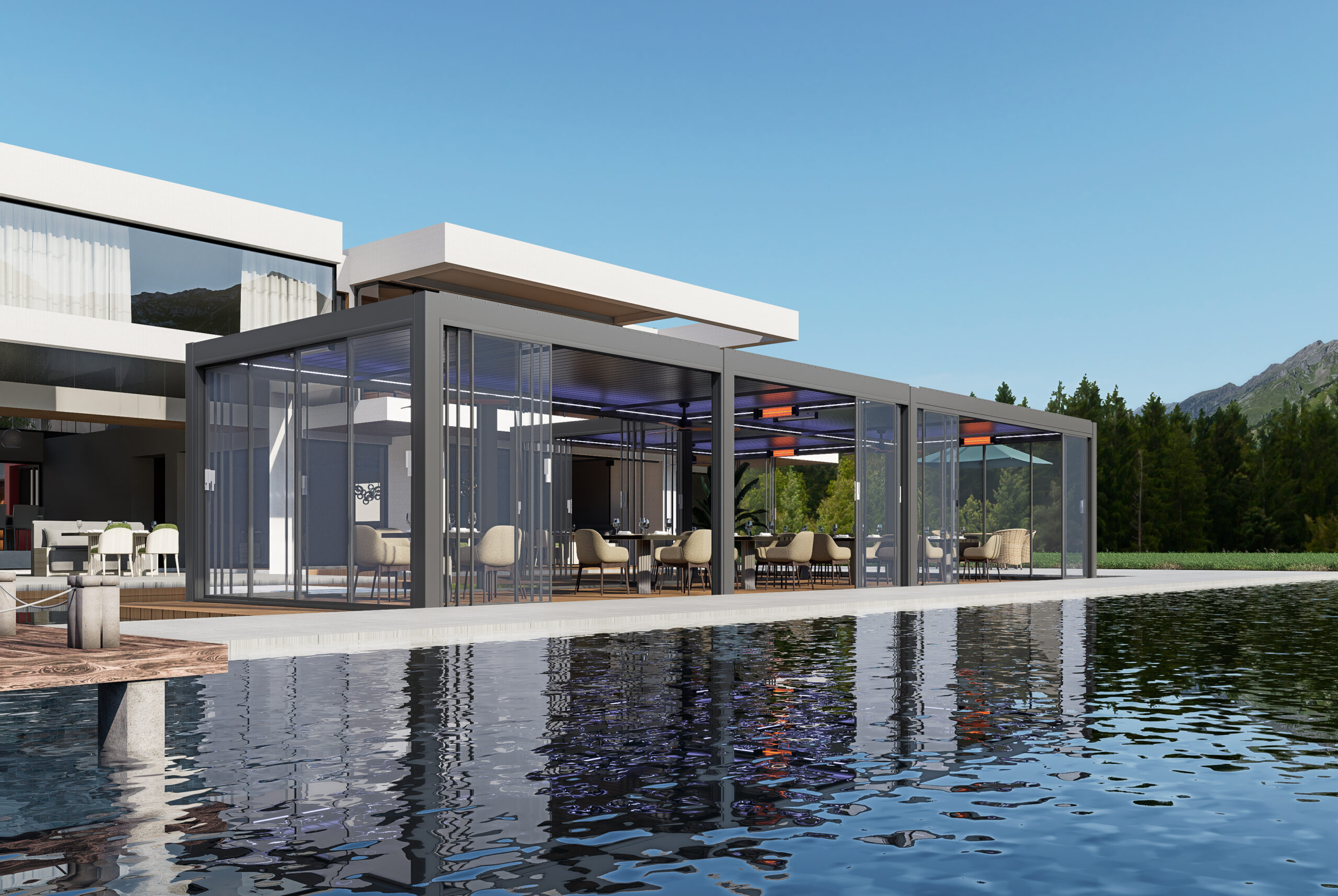

– Multiple pergolas connected into one system -
Adjustable position of drainage pipes (hidden in posts)
🛠️ Upgrade options and accessories:
-

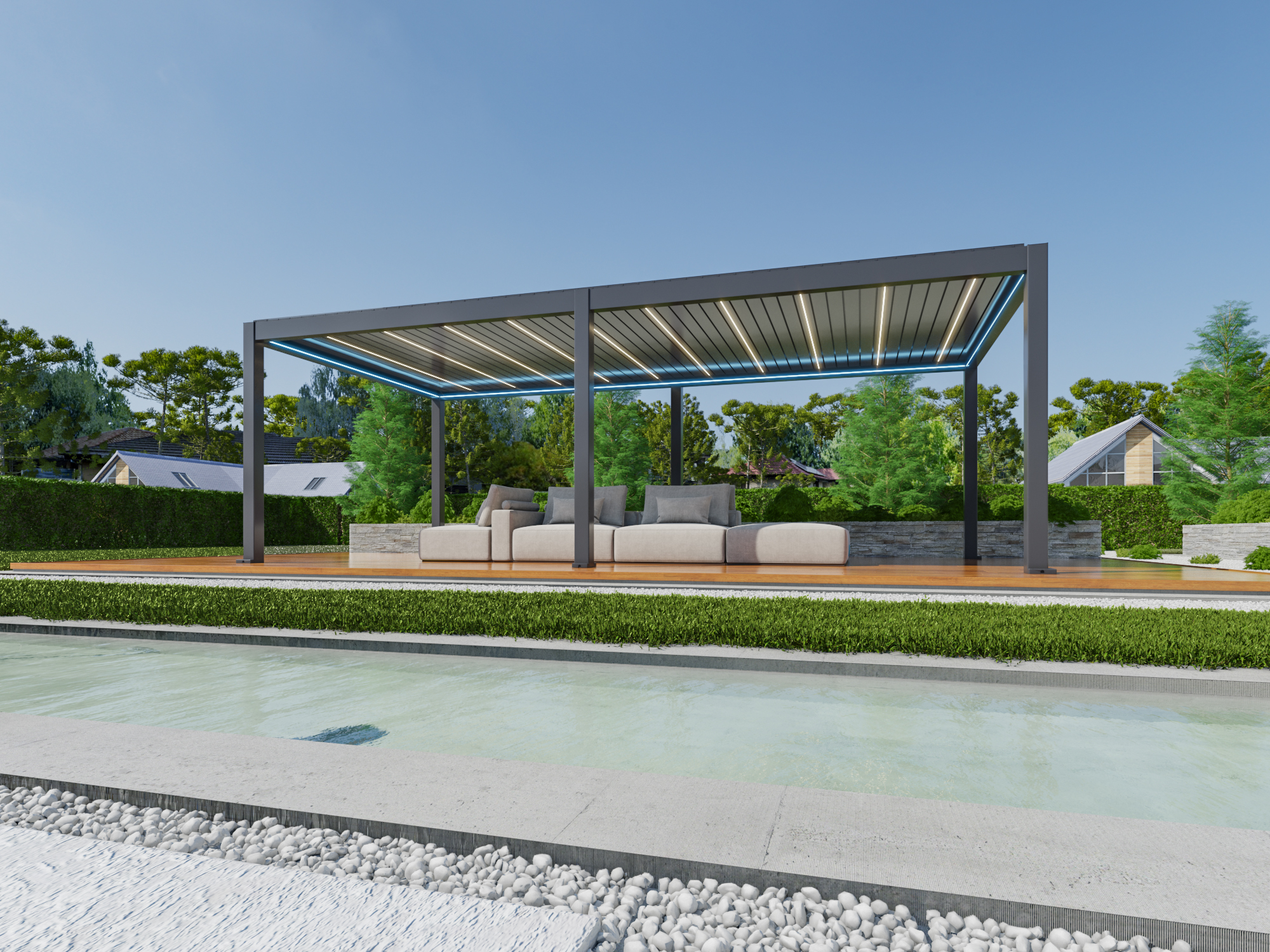

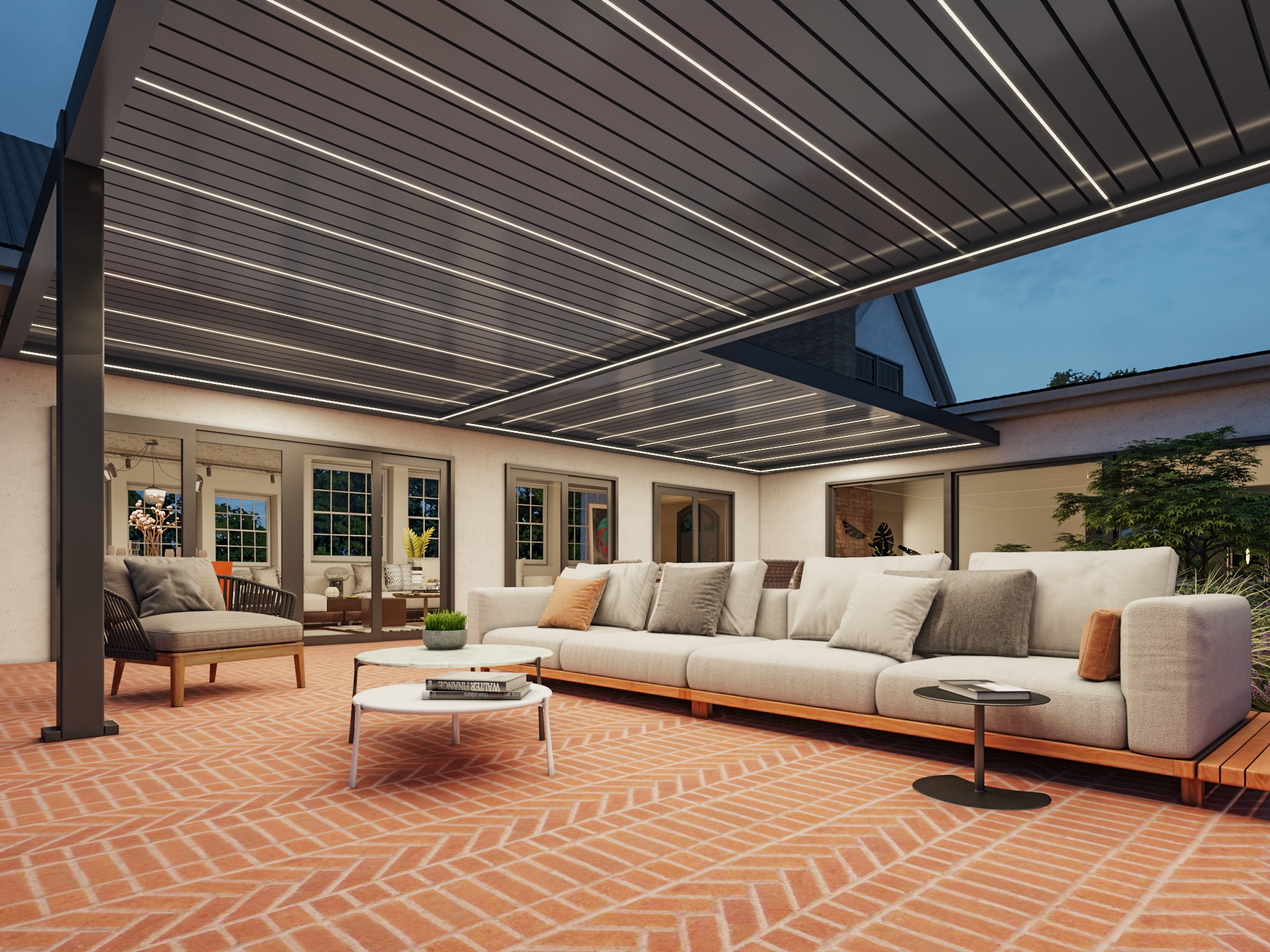

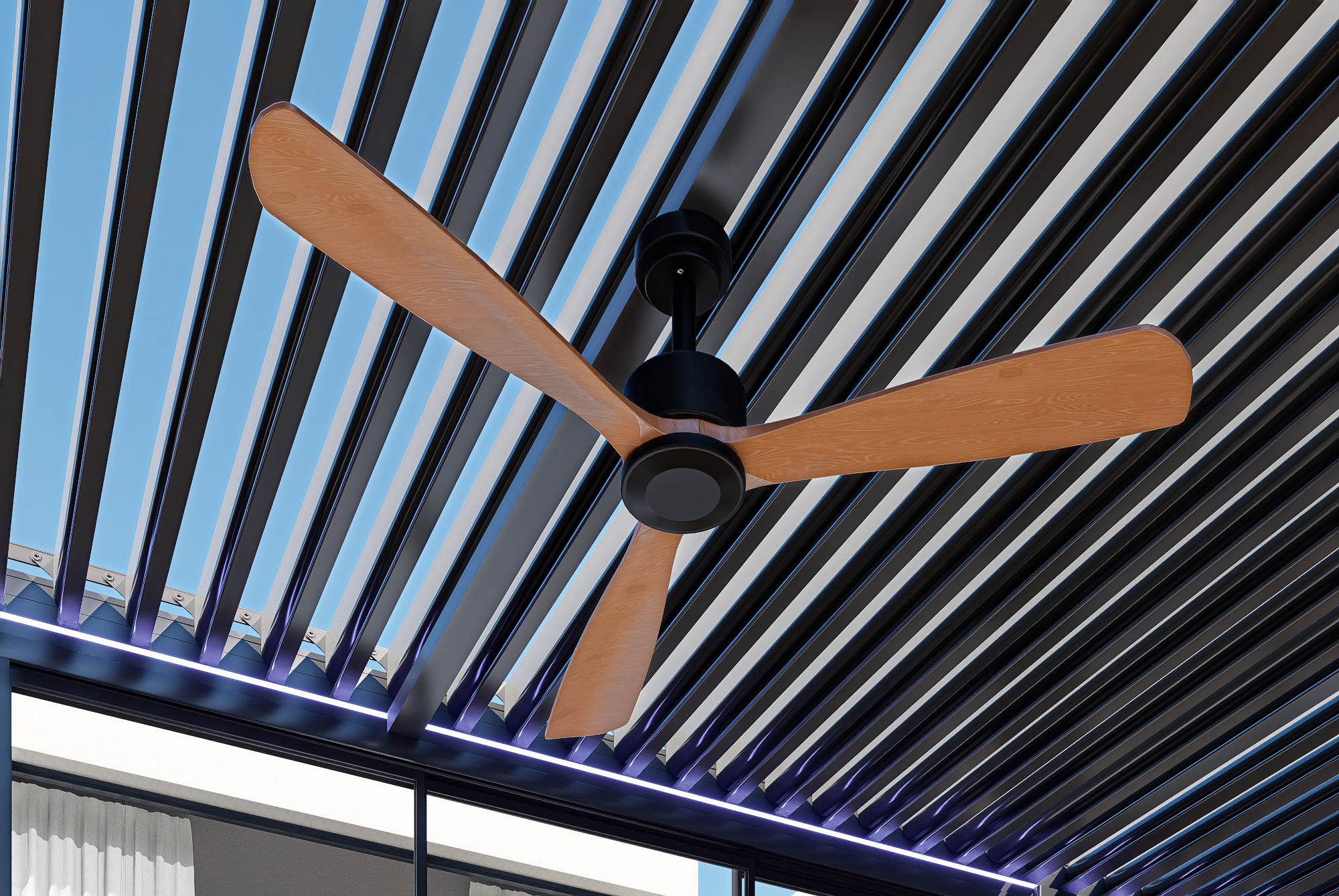

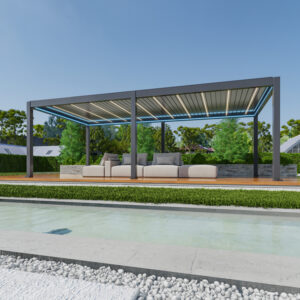

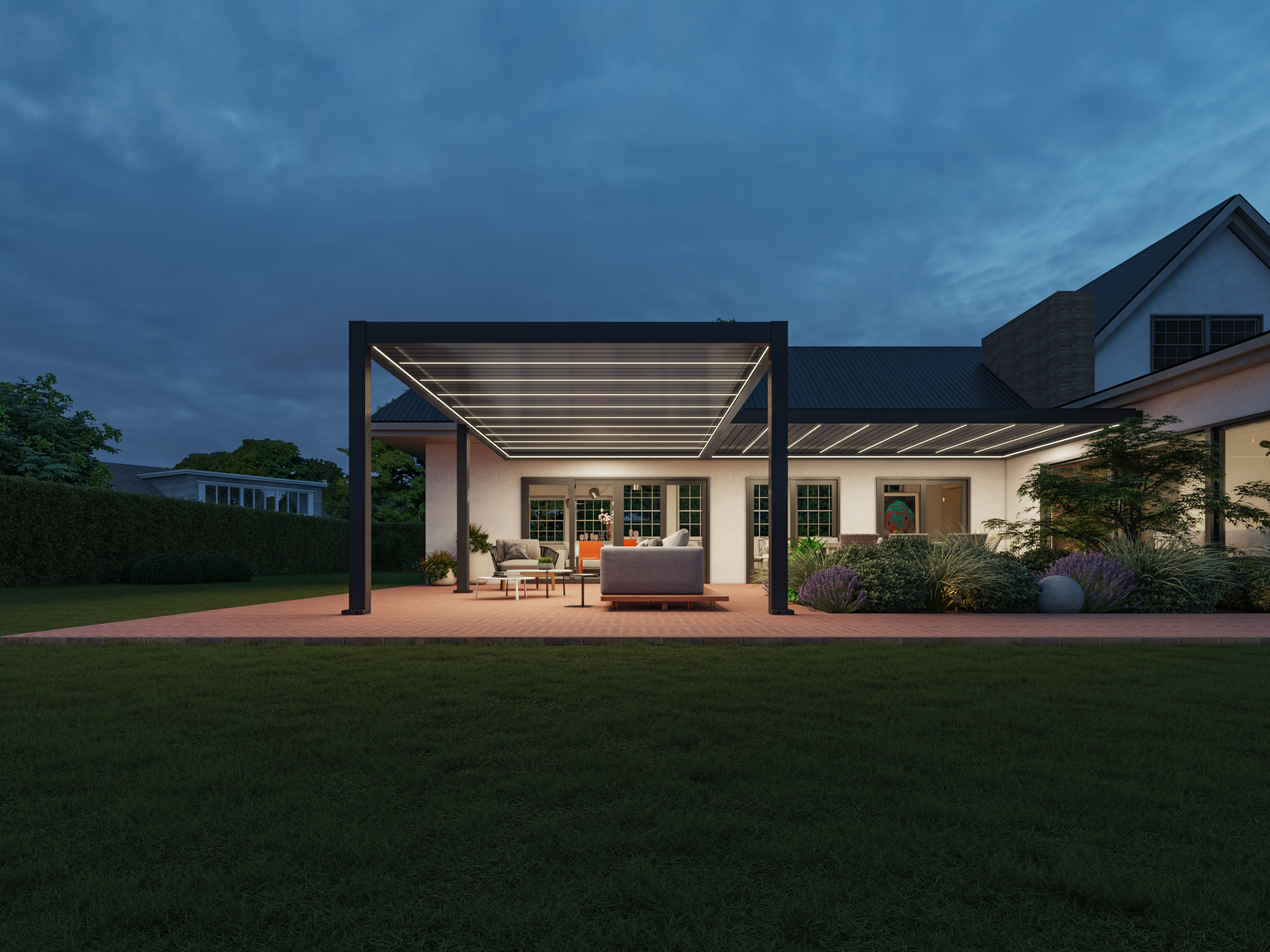

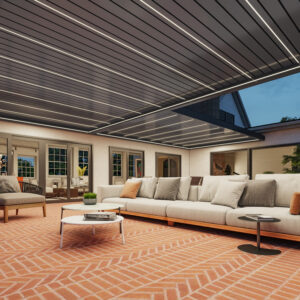

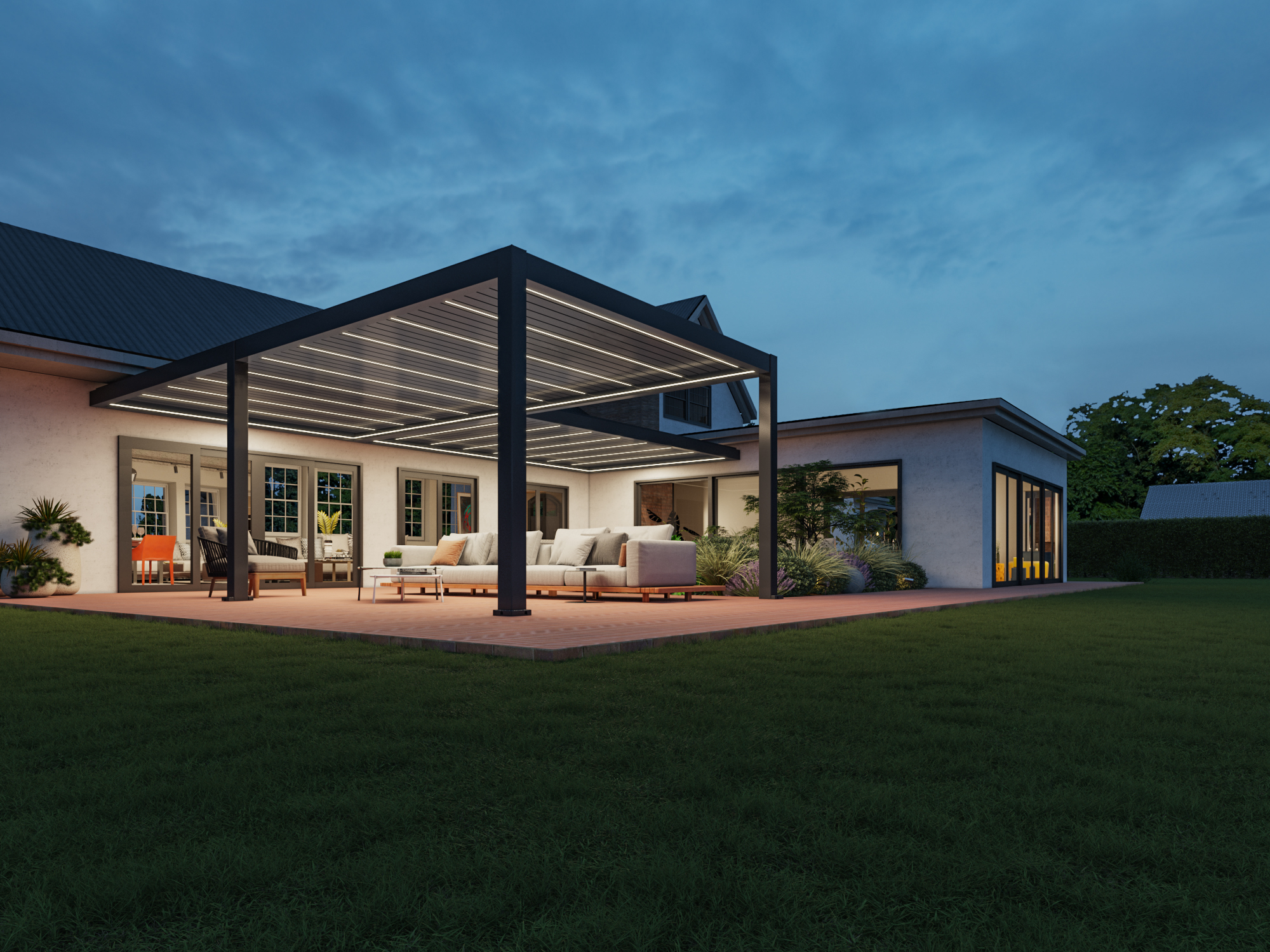

LED lighting (in louvres or frame edges – warm or cool light)
-
ZIP SCREEN roller blinds (motorised with optional sensors)
-

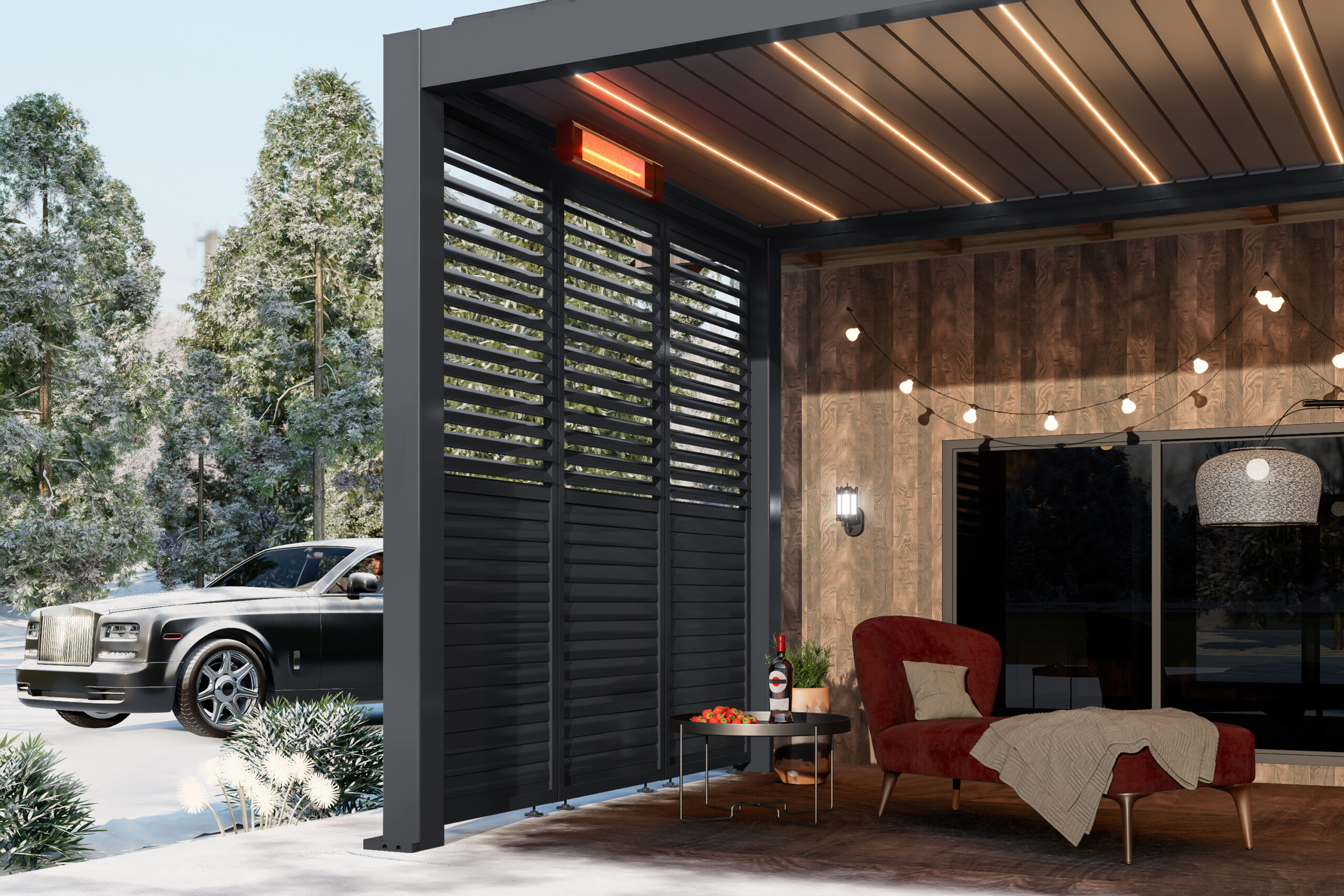

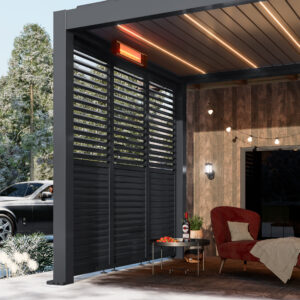

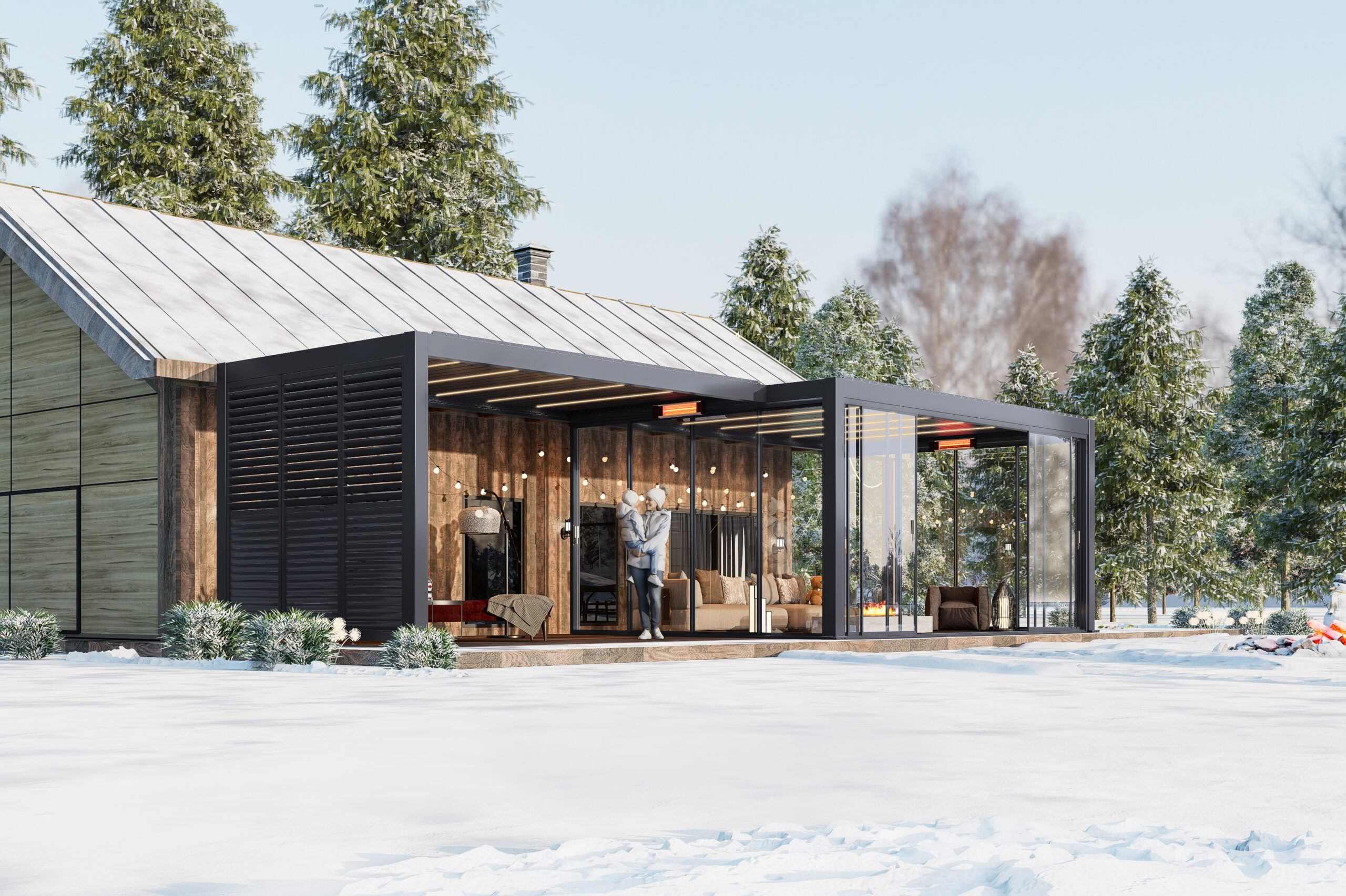

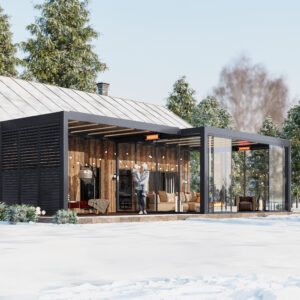

Aluminium louvre walls (fixed, sliding, folding)
-

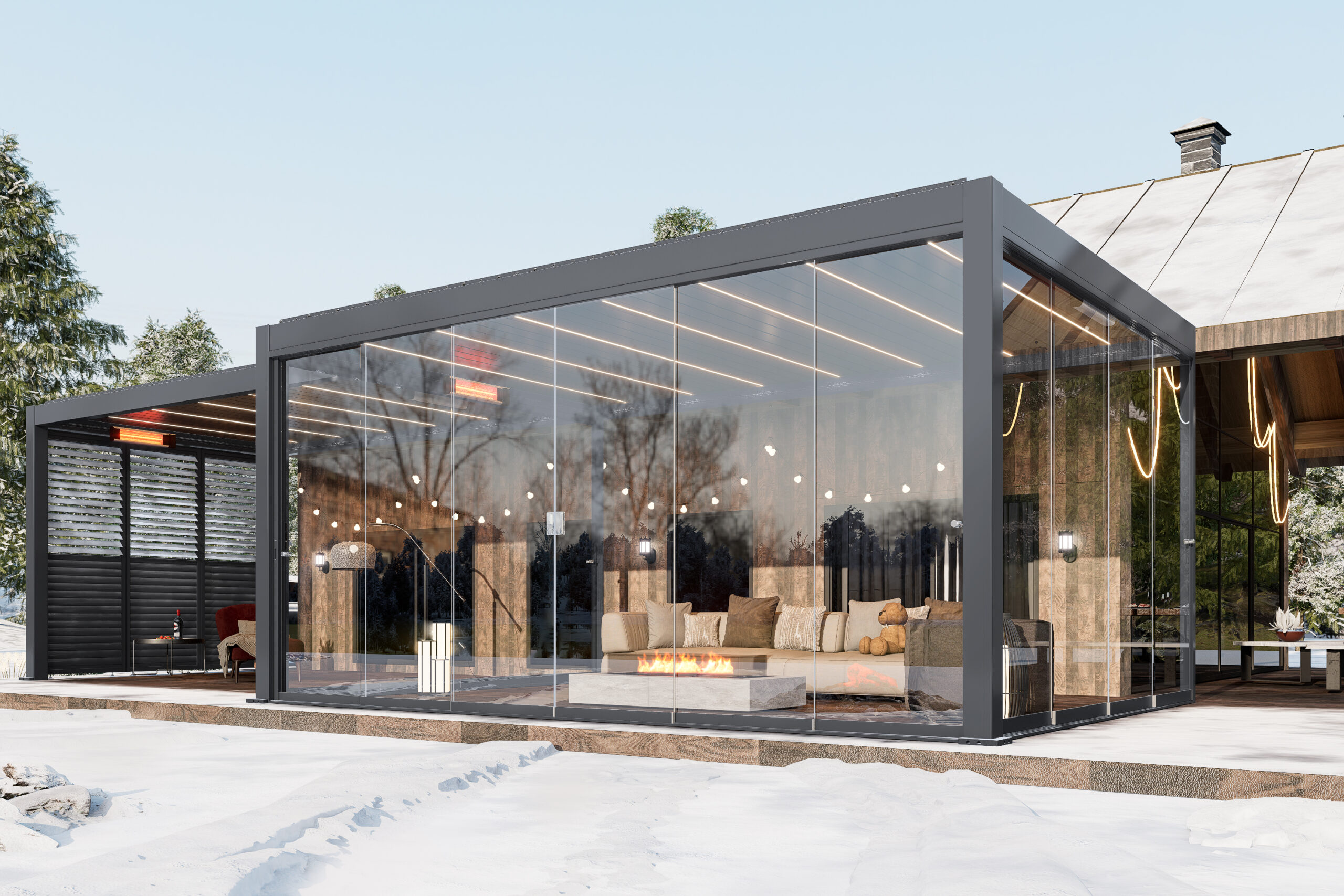

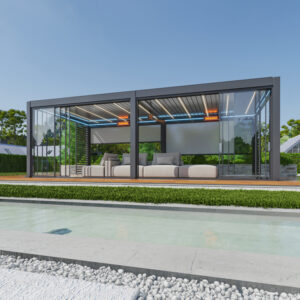

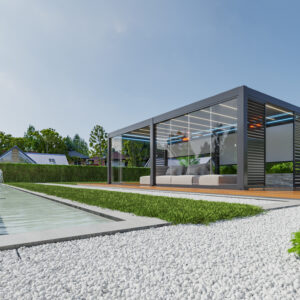

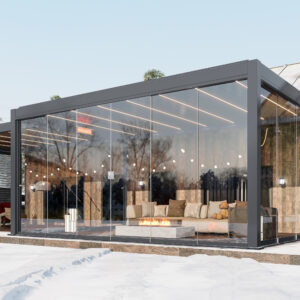

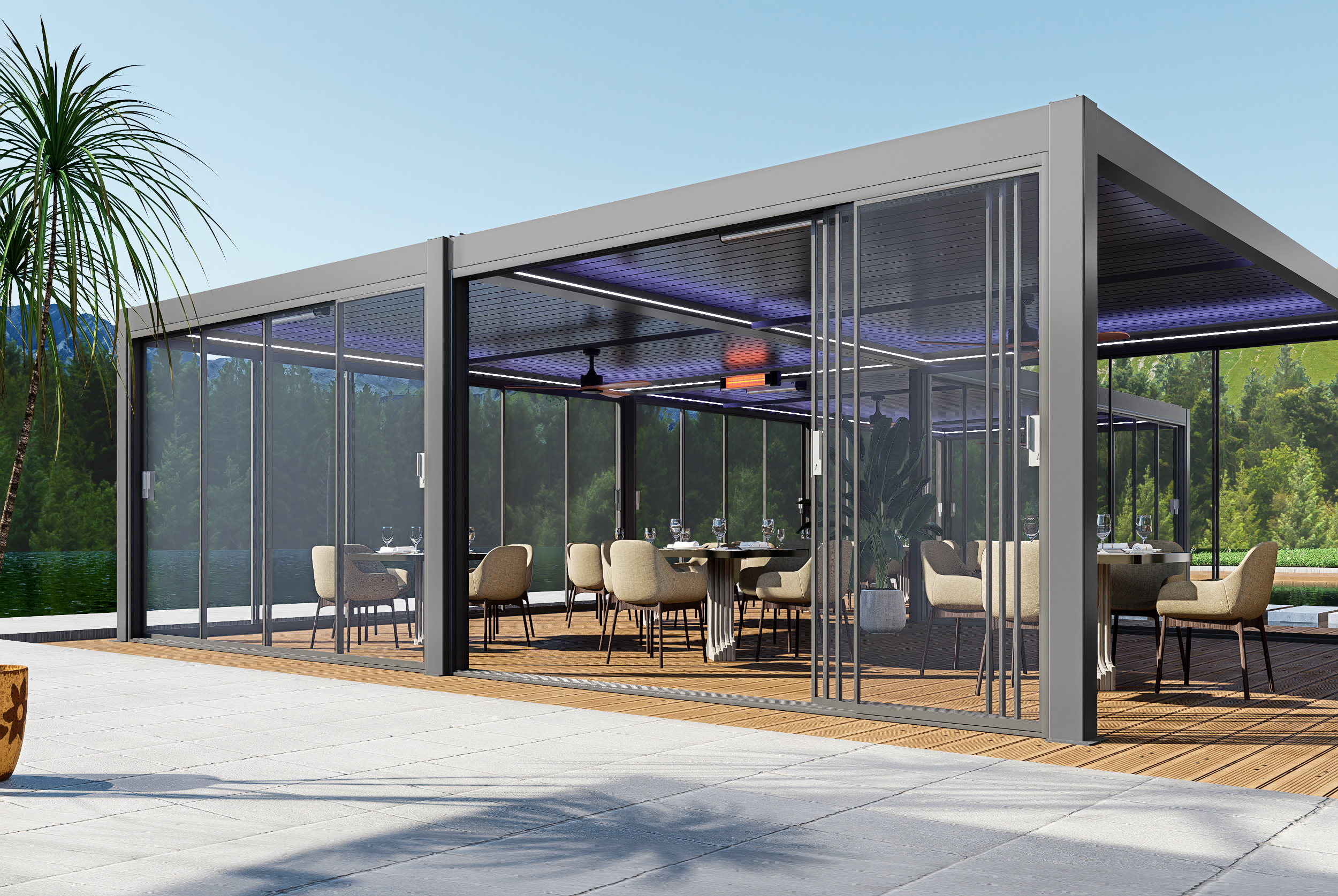

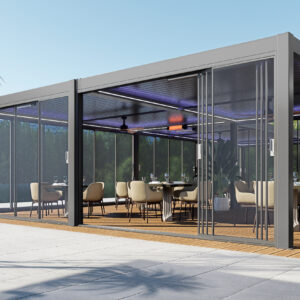

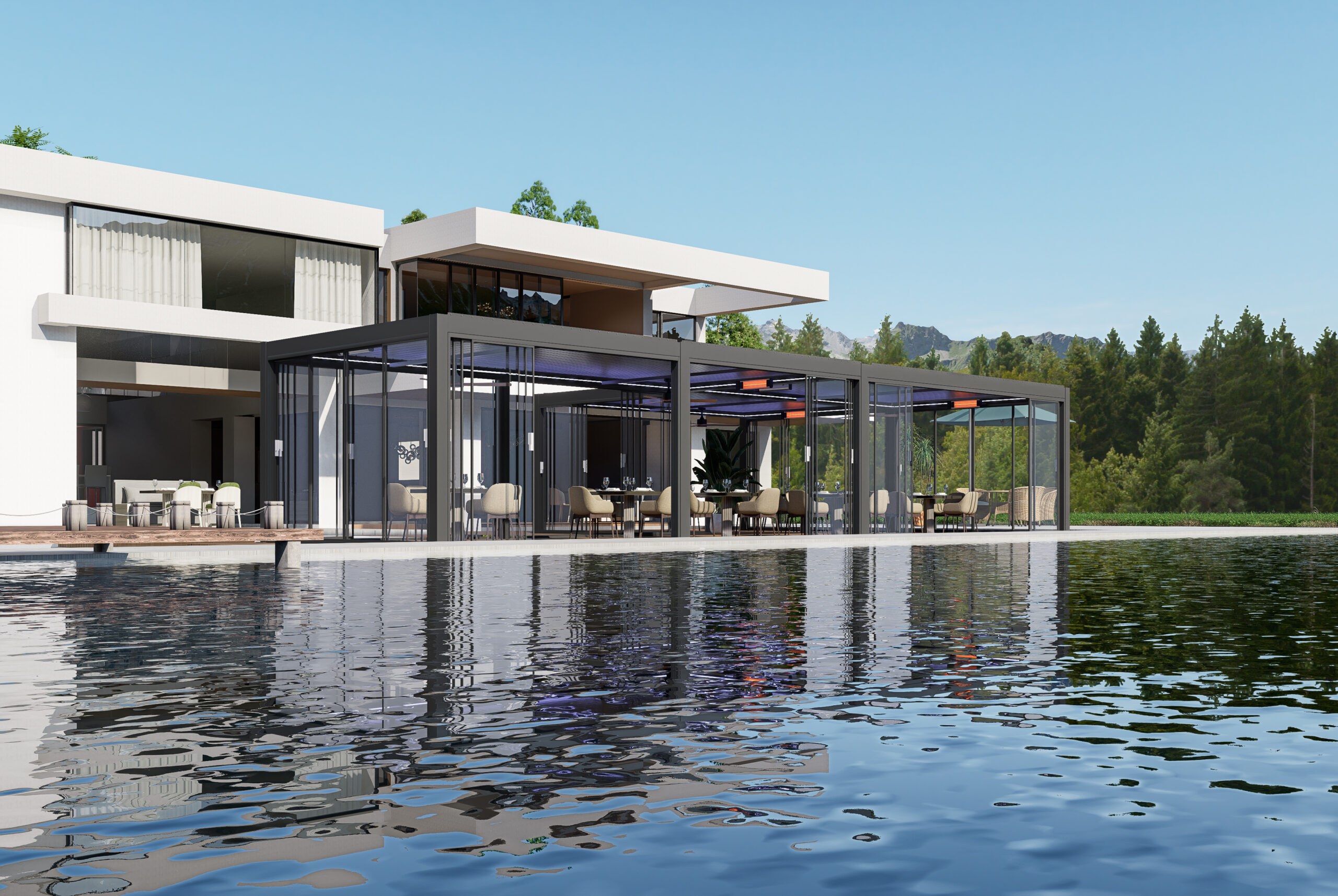

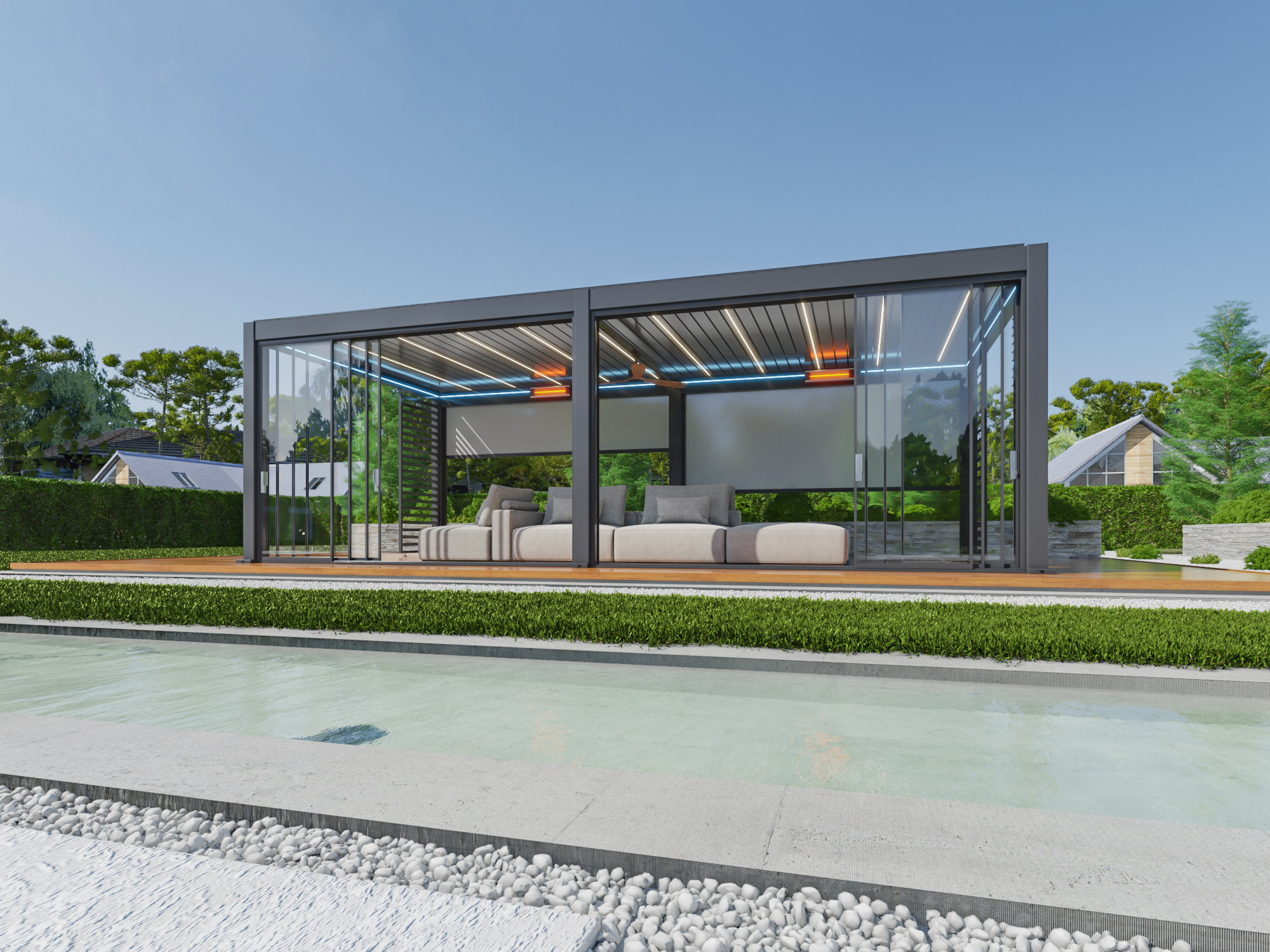

Glass sliding doors (ultra-slim frame)
-
Rain, wind and light sensors for automatic operation
⚙️ Control:
-
Electric motor for louvres with remote control
-
Option to control via smartphone app
-
Integration with smart home systems (optional)
📦 Packaging and installation:
-
The system is modular – suitable for transport and fast assembly
-
Supplied with installation instructions or professional installation available
